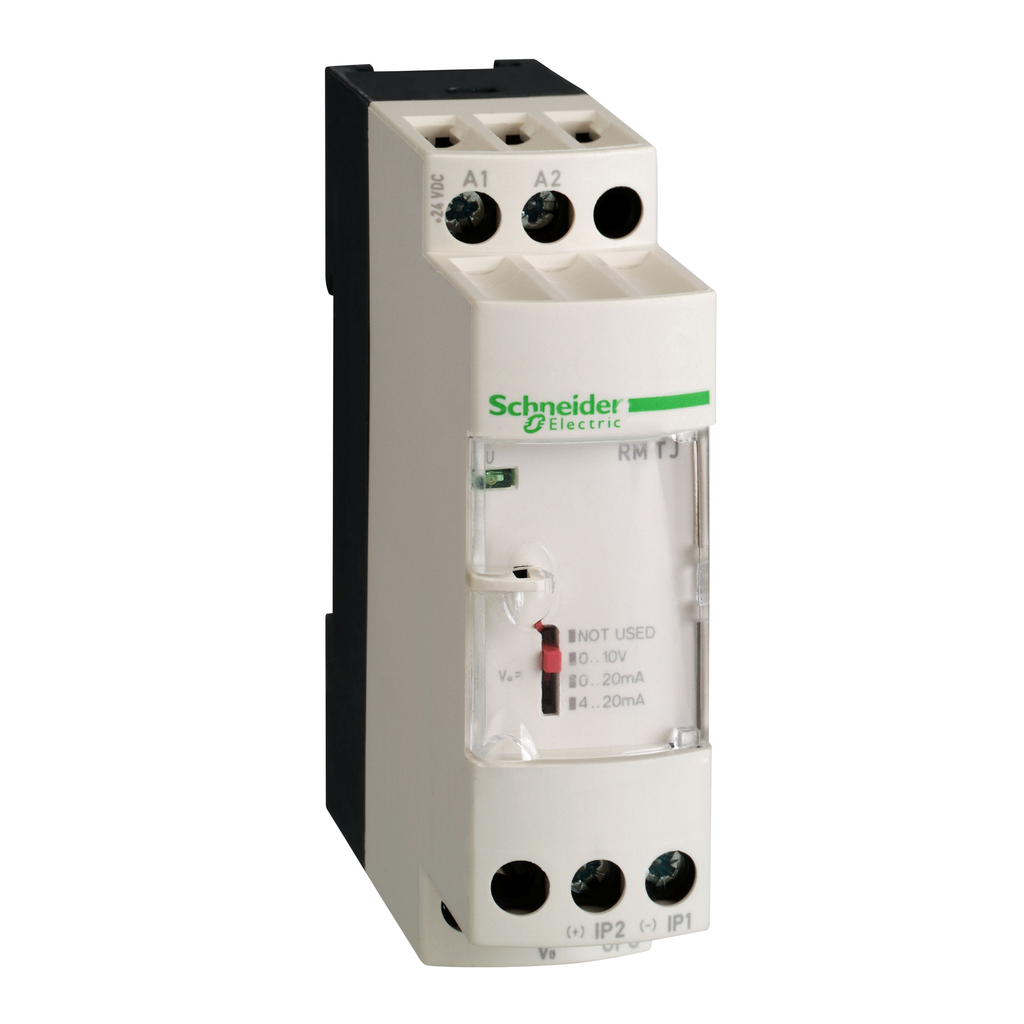

RMTJ60BD - Converter for thermocouples, Harmony Analog, temperature transmitter, 0...300 degree COr 32...572 degree F

RMTJ60BD

Converter for thermocouples, Harmony Analog, temperature transmitter, 0...300 degree COr 32...572 degree F

Add to Quote Catalogue

Specifications

Range Of Product	Harmony Analog
Analogue Output Type	current 0...20 mA <= 500 Ohm current 4...20 mA <= 500 Ohm voltage 0...10 V >= 100 kOhm
Product Or Component Type	converter for thermocouples
Analogue Input Type	thermocouple 0...300 °C/32...572 °F thermocouple J IEC 60584
Warranty	18 months
Current Consumption	<= 40 mA voltage output <= 60 mA current output
Safety Reliability Data	B10d = 45447 MTTFd = 49.2 years
Measurement Error	+/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) +/- 1 % of full scale 20 °C
Clamping Connection Capacity	2 x 1.5 mm² 1 x 2.5 mm²
Cold Junction Compensation	built-in between 0 and 60 °C
[Ui] Rated Insulation Voltage	2 kV
Marking	CE
Analogue Output Voltage	-15...-11 V no input or input wire broken 11...15 V no input or input wire broken
Net Weight	0.12 kg
Fixing Mode	by screws mounting plate) clip-on 35 mm symmetrical DIN rail)
Surge Withstand	0.5 kV 1.2/50 µs IEC 61000-4-5
Local Signalling	for power ON LED (green)
Temperature Coefficient	200 ppm/°C
Protection Type	overvoltage protection on output (+/- 30 V) reverse polarity protection on output short-circuit protection on output
Tightening Torque	0.6-1.1 N.m
Analogue Output Current	-30-0 mA no input or input wire broken
Repeat Accuracy	+/- 0.25 % full scale 20 °C +/- 0.8 % full scale 60 °C
[Us] Rated Supply Voltage	24 V DC +/- 20 %, non isolated
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1607005EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1607005EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA GL UL
Standards	IEC 60584-1 IEC 60947-1
Ambient Air Temperature For Operation	0-50 °C mounting side by side 0-60 °C 2 cm spacing
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Vibration Resistance	5 gn 10-100 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP20 terminal block) IP50 housing)
Disturbance Radiated/Conducted	CISPR 22 group 1 - class B CISPR 11
Pollution Degree	2 IEC 60664-1
Ambient Air Temperature For Storage	-40-85 °C
Resistance To Electrostatic Discharge	6 kV in contact)IEC 61000-4-2 level 3 8 kV in air)IEC 61000-4-2 level 3
Fire Resistance	850 °C IEC 60695-2-1 850 °C UL
Resistance To Fast Transients	1 kV IEC 61000-4-4 on input-output) 2 kV IEC 61000-4-4 on power supply)

Documents

Spec Sheet
Digest Catalog 23: Relays and Timers (OCT 2020) - 0100CT1901_SEC-23_OCT2020 (pdf)
Zelio Analog Interface Modules Catalog - 8501CT0502 (pdf)
Harmony Analog - Converters for thermocouple - Converters for Pt100 probe - Voltage current converters - Harmony+Analog+-+Converters+for+thermocouple+-+Converters+for+Pt100+probe+-+Voltage+current+converters+-+catalog+English+August+2021 (pdf)
RM... Harmony Analog Interfaces, Instruction Sheet (EN) - 166165901A55_07 (pdf)
RM4... Measurement and control relays - 1661659_01A55 (pdf)
