RMPT10BD – Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 40…40 degree COr 40…104 degree F
RMPT10BD

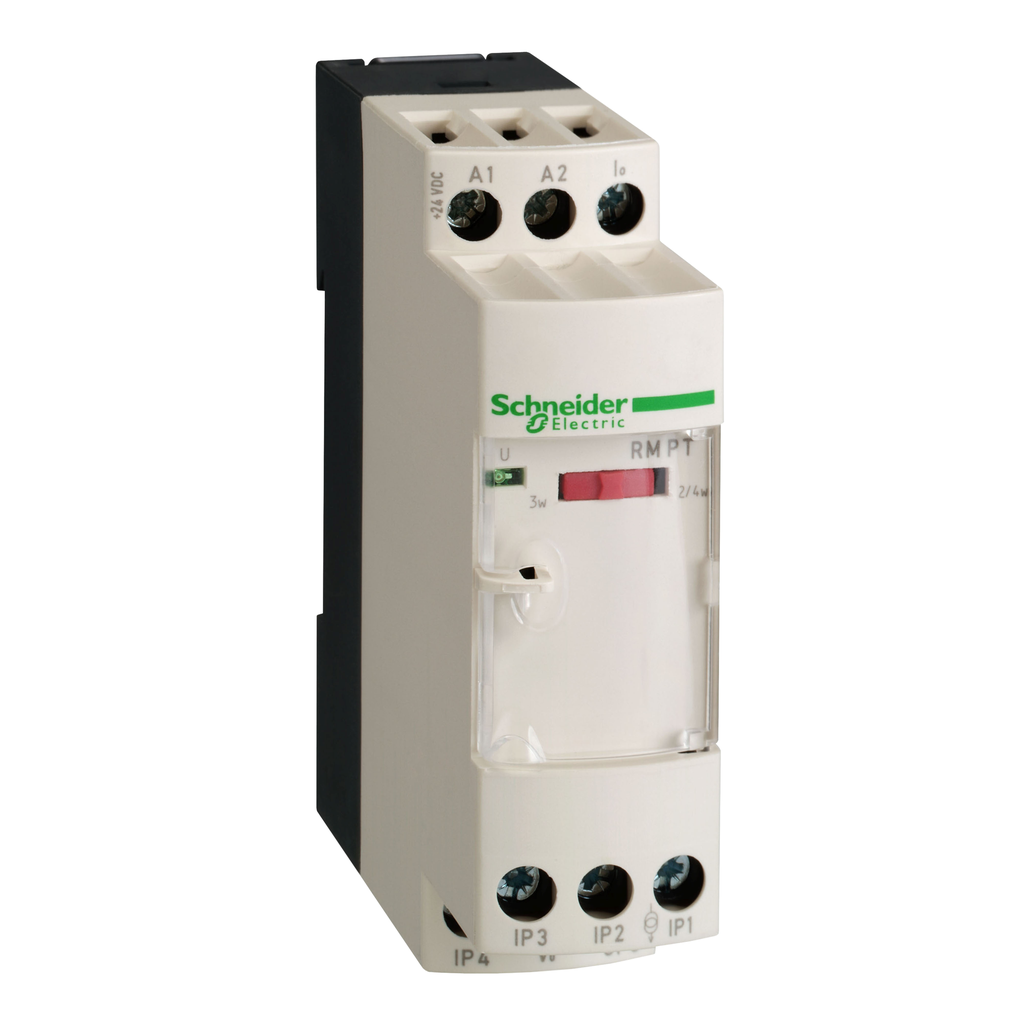

Converter for Universal Pt100 probes, Harmony Analog, temperature transmitter, 40...40 degree COr 40...104 degree F

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony Analog
Analogue Output Type
  • current 0...20 mA <= 500 Ohm
  • current 4...20 mA <= 500 Ohm
  • voltage 0...10 V >= 100 kOhm
Product Or Component Type converter for Universal Pt100 probes
Analogue Input Type temperature probe - 40...40 °C/- 40...104 °F Pt 100 2, 3 or 4 wires
Warranty 18 months
[Us] Rated Supply Voltage 24 V DC non isolated +/- 20 %
Current Consumption
  • <= 40 mA voltage output
  • <= 60 mA current output
Safety Reliability Data
  • B10d = 30437
  • MTTFd = 32.9 years
Measurement Error
  • +/- 0.5 % of full scale 3 or 4 wires)20 °C
  • +/- 1 % of full scale 2 wires)20 °C
  • +/- 10 % of full scale20 °C electromagnetic interference of 10 V/m)
Surge Withstand 0.5 kV 1.2/50 µs IEC 61000-4-5
Clamping Connection Capacity
  • 1 x 2.5 mm²
  • 2 x 1.5 mm²
Maximum Wiring Resistance 0.2 Ohm 2 wires
Local Signalling for power ON LED (green)
Temperature Coefficient 150 ppm/°C
Protection Type
  • overvoltage protection on output (+/- 30 V)
  • reverse polarity protection on output
  • short-circuit protection on output
  • reverse polarity protection on power supply
[Ui] Rated Insulation Voltage 2000 V
Marking CE
Analogue Output Voltage
  • -15...-11 V no input or input wire broken
  • 11...15 V no input or input wire broken
Net Weight 0.12 kg
Fixing Mode
  • by screws mounting plate)
  • clip-on 35 mm symmetrical DIN rail)
Tightening Torque 0.6-1.1 N.m
Analogue Output Current
  • -30-0 mA no input or input wire broken
  • 22-30 mA no input or input wire broken
Repeat Accuracy
  • +/- 0.2 % full scale 20 °C
  • +/- 0.6 % full scale 60 °C
China Rohs Regulation X
Circularity Profile ENVEOLI1607005EN
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1607005EN
Sustainable Offer Status Green Premium product
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Disturbance Radiated/Conducted
  • CISPR 11
  • CISPR 22 group 1 - class B
Product Certifications
  • UL
  • GL
  • CSA
Pollution Degree 2 IEC 60664-1
Ambient Air Temperature For Storage -40-85 °C
Standards
  • DIN 43760
  • EN/IEC 60584-1
  • EN/IEC 60947-1
  • EN/IEC 60751
Ambient Air Temperature For Operation
  • 0-50 °C mounting side by side
  • 0-60 °C 2 cm spacing
Electromagnetic Compatibility
  • electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2
  • electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2
Fire Resistance
  • 850 °C IEC 60695-2-1
  • 850 °C UL
Shock Resistance 50 gn 11 ms IEC 60068-2-27
Vibration Resistance 5 gn 10-100 Hz)IEC 60068-2-6
Resistance To Fast Transients
  • 1 kV IEC 61000-4-4 on input-output)
  • 2 kV IEC 61000-4-4 on power supply)
Ip Degree Of Protection
  • IP20 terminal block)
  • IP50 housing)
