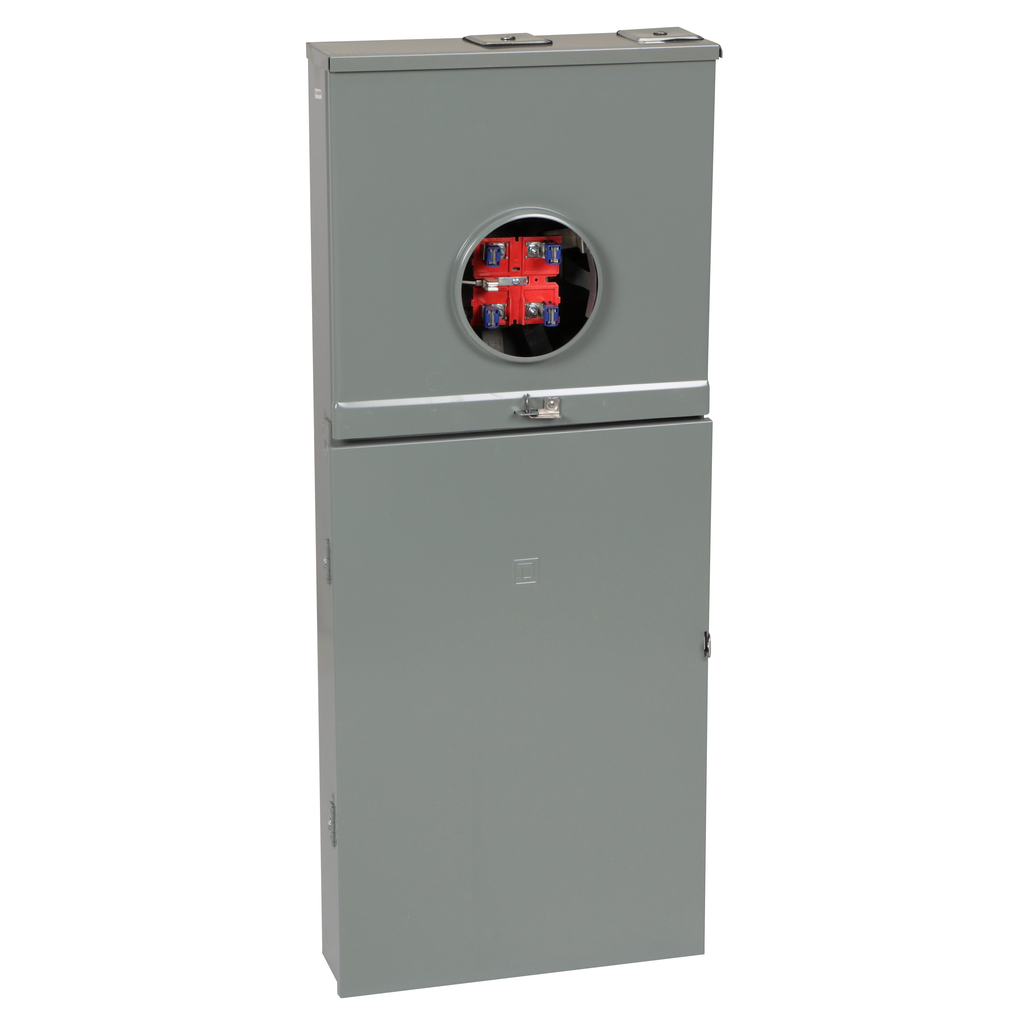

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Homeline |
---|---|
Product Or Component Type | All-In-One |
Hub Type | A |
Meter Socket Type | ringless |
Connections - Terminals | plug-on neutral |
Height | 45.47 in |
Tightening Torque |
|
Branch Circuit Breaker Rated Current | 200 A |
Bypass Type | no bypass |
Service Feed Location |
|
Electrical Connection |
|
Number Of Circuits | 42 |
Number Of Spaces | 30 |
Short-Circuit Current | 22 kA |
Number Of Tandem Circuit Breakers | 12 |
Service Disconnect Rated Current | 200 A |
Line Rated Current | 200 A |
Width | 18.76 in |
Awg Gauge |
|
Depth | 5.41 in |
Device Composition | service disconnect (factory installed) |
Device Mounting | surface |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Nema Degree Of Protection | NEMA 3R |
