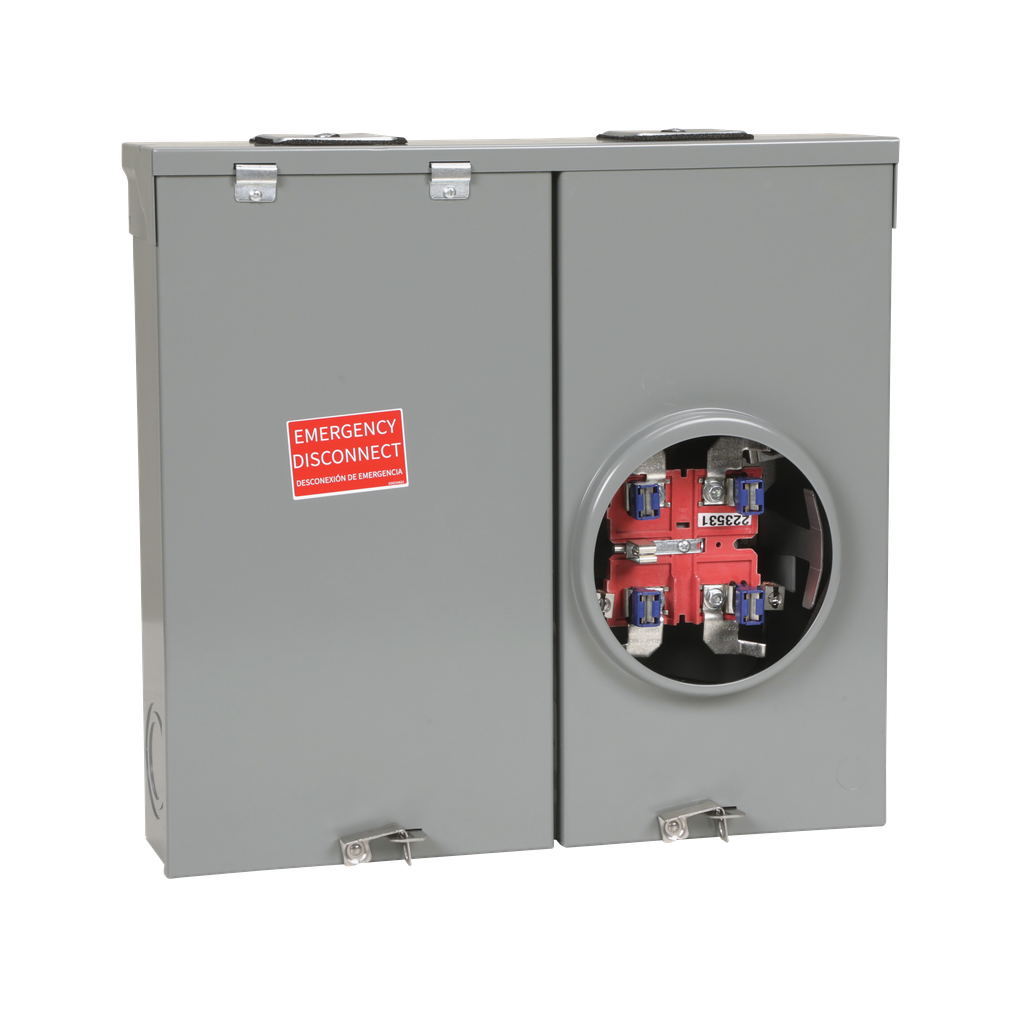

RC2M200S - Meter mains, QO, CSED, ringless socket, 200A, surface mount, no bypass

RC2M200S

Meter mains, QO, CSED, ringless socket, 200A, surface mount, no bypass

QO All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This QO All In One combination service entrance device has a ringless meter socket with no bypass. This unit can be feed from an overhead or underground service. The service disconnect, which must be ordered separately, is a QOM2 VH (200 A maximum) and a QO VH (50 A maximum). Device has a 22 kA short circuit current rating. Load center has no spaces. This unit has a NEMA 3R surface mounting enclosure that is 18.23 inches tall, 19.58 inches wide and 4.60 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept up to two 8 AWG to 2/0 AWG copper or aluminum wire. This QO combination service entrance device is UL Listed. Device meets EUSERC standards.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	QO
Product Or Component Type	Meter Mains
Warranty	18 months
Height	18.23 in
Short-Circuit Current	22 kA
Number Of Tandem Circuit Breakers	0
Tightening Torque	lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper lugs 250 lb.in, AWG 4...250 kcmil, aluminium/copper service ground 50 lb.in, AWG 3...AWG 2/0, aluminium/copper service ground 45 lb.in, AWG 6...AWG 4, aluminium/copper service ground 40 lb.in, AWG 8, copper lugs 50 lb.in, AWG 3...AWG 2/0, aluminium/copper lugs 45 lb.in, AWG 6...AWG 4, aluminium/copper lugs 40 lb.in, AWG 8, copper Cover 10 lb.in
Hub Type	A
Bypass Type	no bypass
Meter Socket Type	ringless
Service Feed Location	OH UG
Service Disconnect Rated Current	200 A
Line Rated Current	200 A
Awg Gauge	AWG 6...300 kcmil aluminium/copper)line side AWG 8...AWG 2/0 2 aluminium/copper)service ground
Width	19.58 in
Electrical Connection	lugs line side lugs service ground
Depth	4.60 in
Number Of Circuits	0
Number Of Spaces	0
Network Number Of Phases	1
Device Composition	service disconnect (ordered separately)
Device Mounting	surface
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407020EN
Sustainable Offer Status	Green Premium product
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications	UL E-6294
