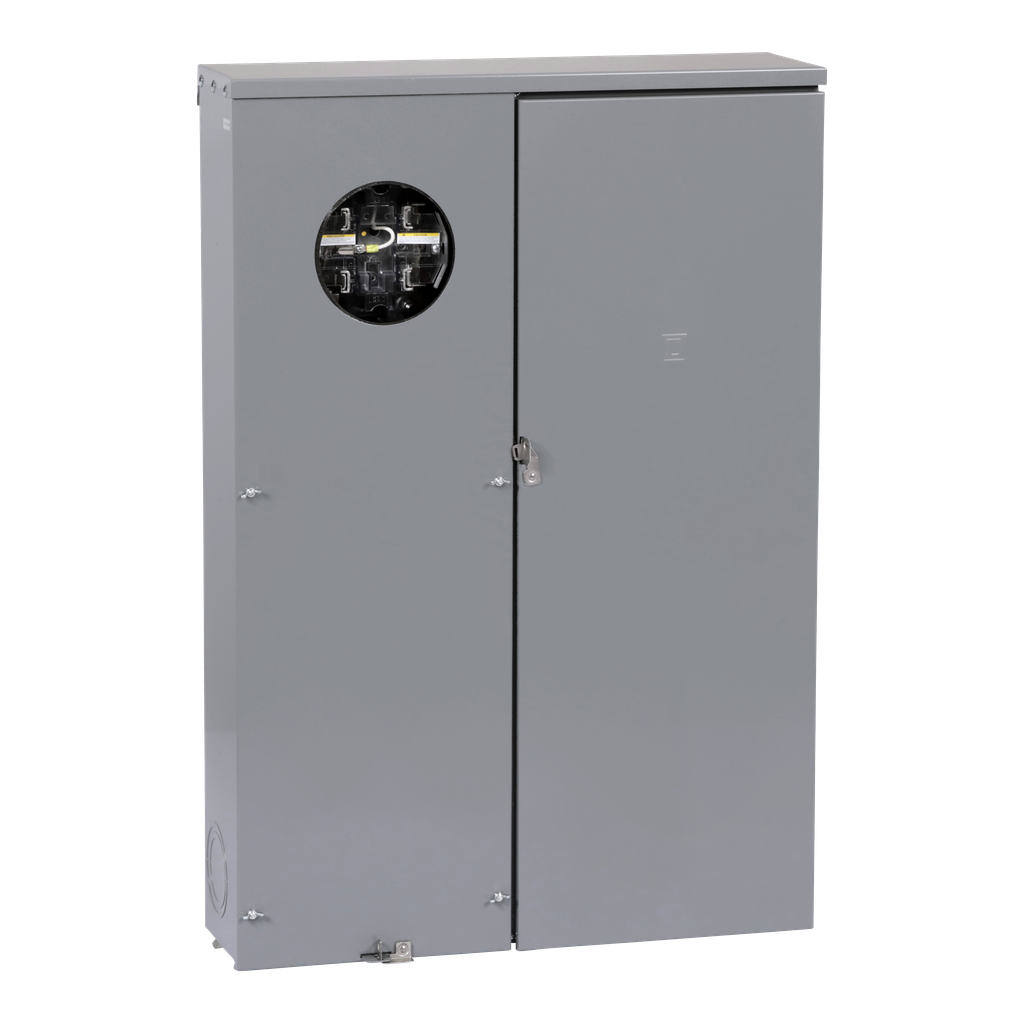

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, is rated at 400A but has a service disconnect rated at 150 A and has a short circuit current rating of 25 kA. This device has a lever bypass type, uses a ringless meter socket type and can only be service feed underground. This CSED uses studs on the line side and uses lugs on the service ground side of the device, has a wire range of 4 AWG–250 kcmil on the service ground side. The dimensions for this product are 43.00 in (H) x 28.25 in (W) x 7.87 in (D).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | QO |
---|---|
Provided Equipment | fifth jaw |
Product Or Component Type | Meter Mains |
Warranty | 18 months |
Height | 43.00 in |
Short-Circuit Current | 25 kA |
Number Of Tandem Circuit Breakers | 0 |
Hub Type | A-L |
Bypass Type | class 320 lever bypass |
Meter Socket Type | ringless |
Service Feed Location | UG |
Service Disconnect Rated Current | 150 A |
Line Rated Current | 400 A |
Awg Gauge | AWG 4...250 kcmil copper or aluminium)service ground |
Width | 28.25 in |
Electrical Connection |
|
Depth | 7.87 in |
Number Of Circuits | 0 |
Number Of Spaces | 12 |
Network Number Of Phases | 1 |
Device Composition |
|
Device Mounting | surface |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | UL E-6294 |
