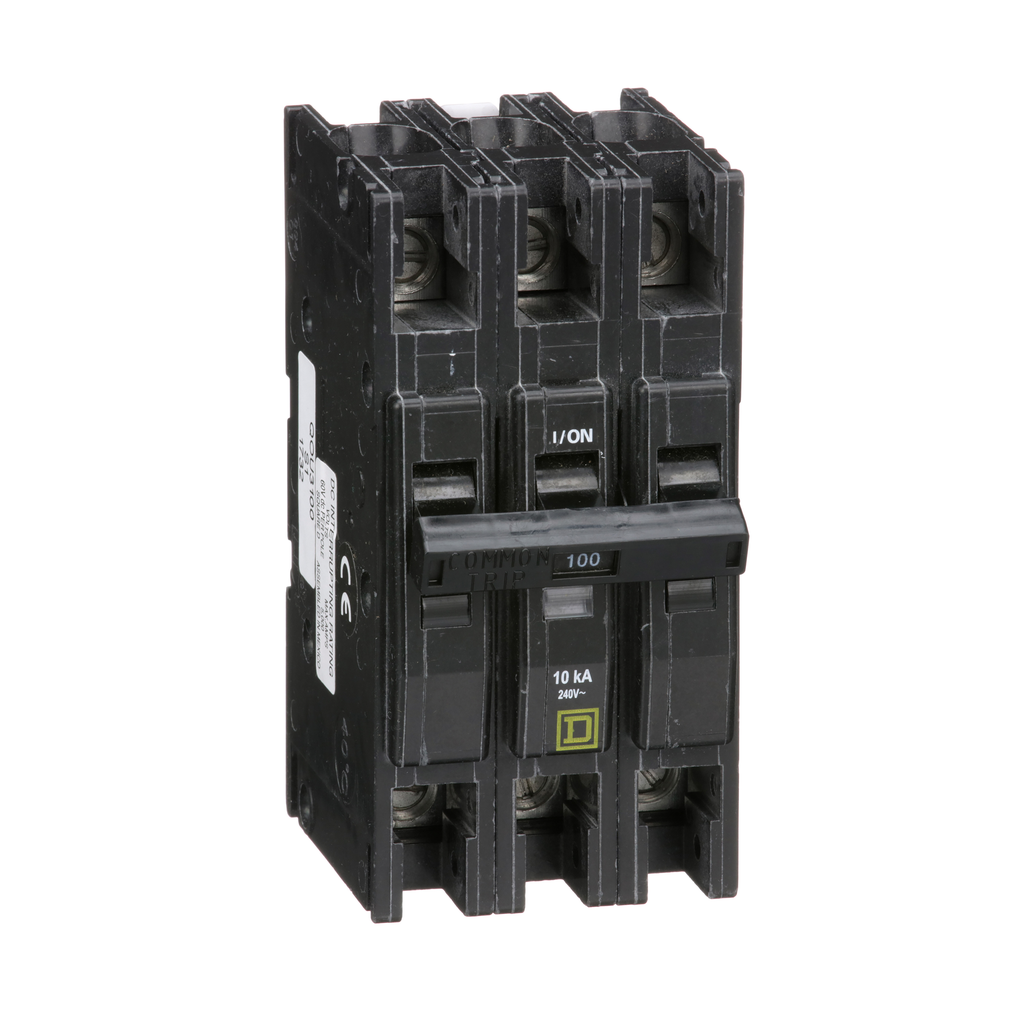

QOU3100
Mini circuit breaker, QOU, 100A, 3 pole, 240 VAC, 10kA
QO™ and QOU Miniature Circuit Breakers, QOU3100, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Completed with mounted foot as accesory.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Warranty | 18 months |
| Height | 4.45 in |
| Mounting Mode | unit mount |
| Tightening Torque | 45-45 lbf.in (AWG 12...AWG 2/0) |
| Line Rated Current | 100 A |
| Awg Gauge | AWG 12...AWG 2/0 aluminium/copper |
| Width | 2.25 in |
| Electrical Connection |
|
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
