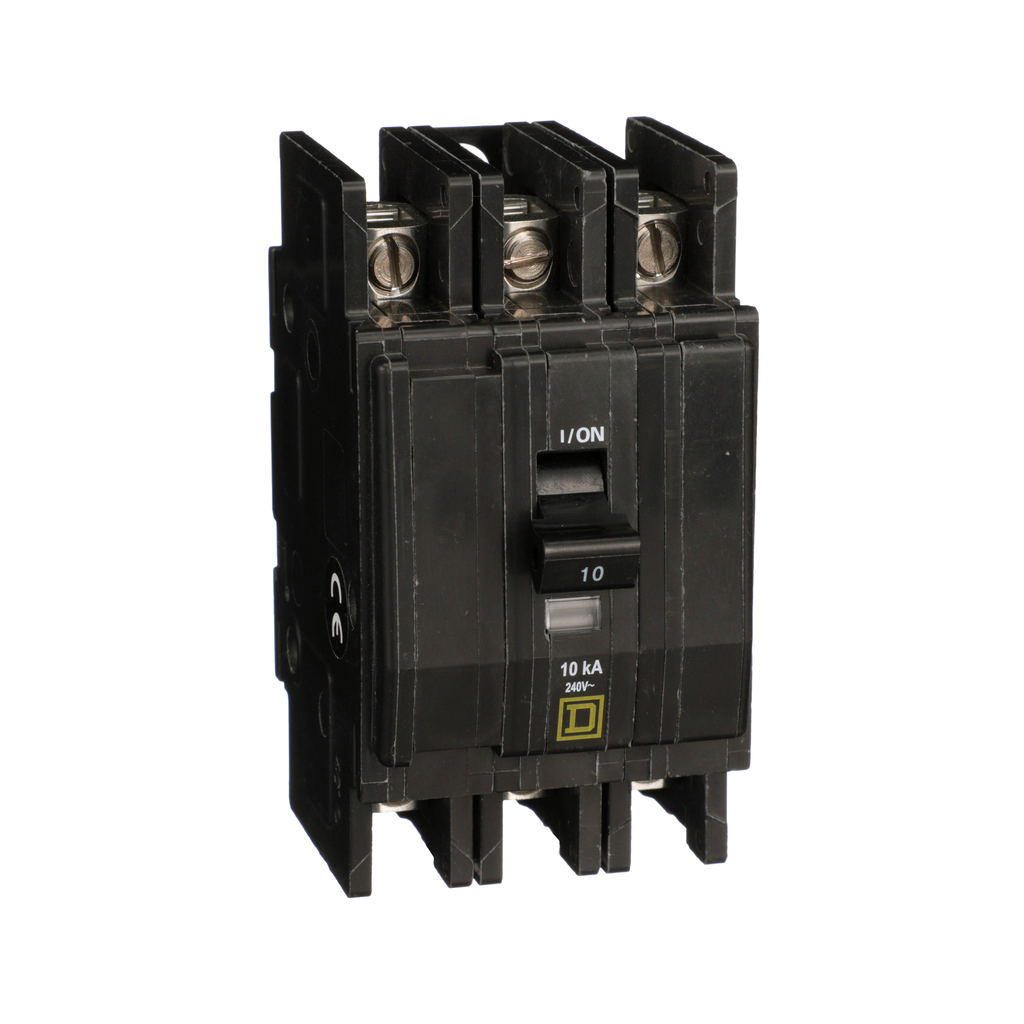

QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 3 pole QOU miniature circuit breaker is rated as 10 A at 240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified. These QOU breakers are packed in bulk.
Brand: Schneider Electric
Add to Quote CatalogueCircuit Breaker Application | HACR rated |
---|---|
Range Of Product | QOU |
Circuit Breaker Type | standard |
Product Or Component Type | miniature circuit-breaker |
Warranty | 18 months |
Height | 4.05 in |
Mounting Mode | unit mount |
Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
Line Rated Current | 10 A |
Awg Gauge | AWG 14...AWG 2 aluminium/copper |
Width | 2.25 in |
Electrical Connection |
|
Depth | 2.95 in |
[Ue] Rated Operational Voltage |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Halogen Content Performance | Halogen free product |
Product Certifications |
|
