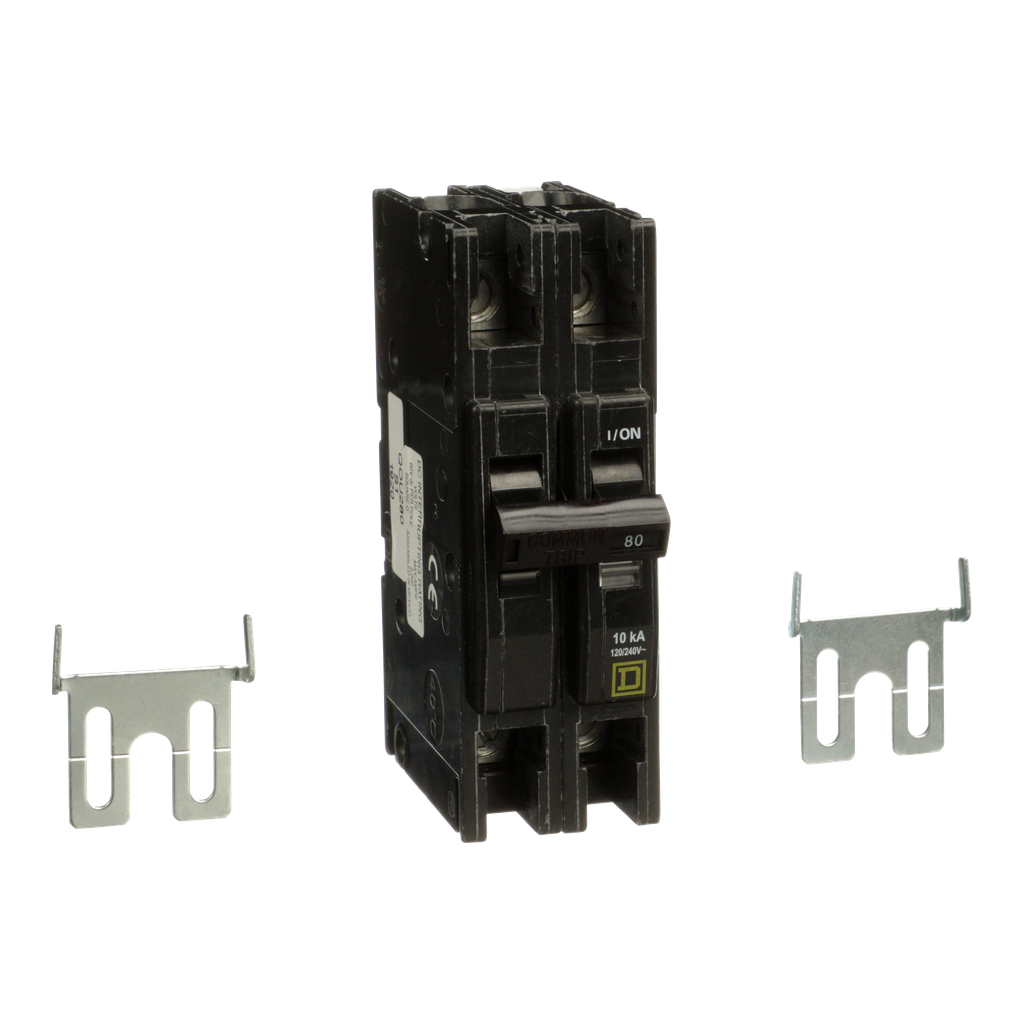

Mini circuit breaker, QOU, 80A, 2 pole, 120/240 VAC, 10kA
QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 2 pole QOU miniature circuit breaker is rated as 80 A at 120/240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5-02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Warranty | 18 months |
| Height | 4.45 in |
| Mounting Mode | unit mount |
| Tightening Torque | 45-45 lbf.in (AWG 12...AWG 2/0) |
| Line Rated Current | 80 A |
| Awg Gauge | AWG 12...AWG 2/0 aluminium/copper |
| Width | 1.5 in |
| Electrical Connection |
|
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
