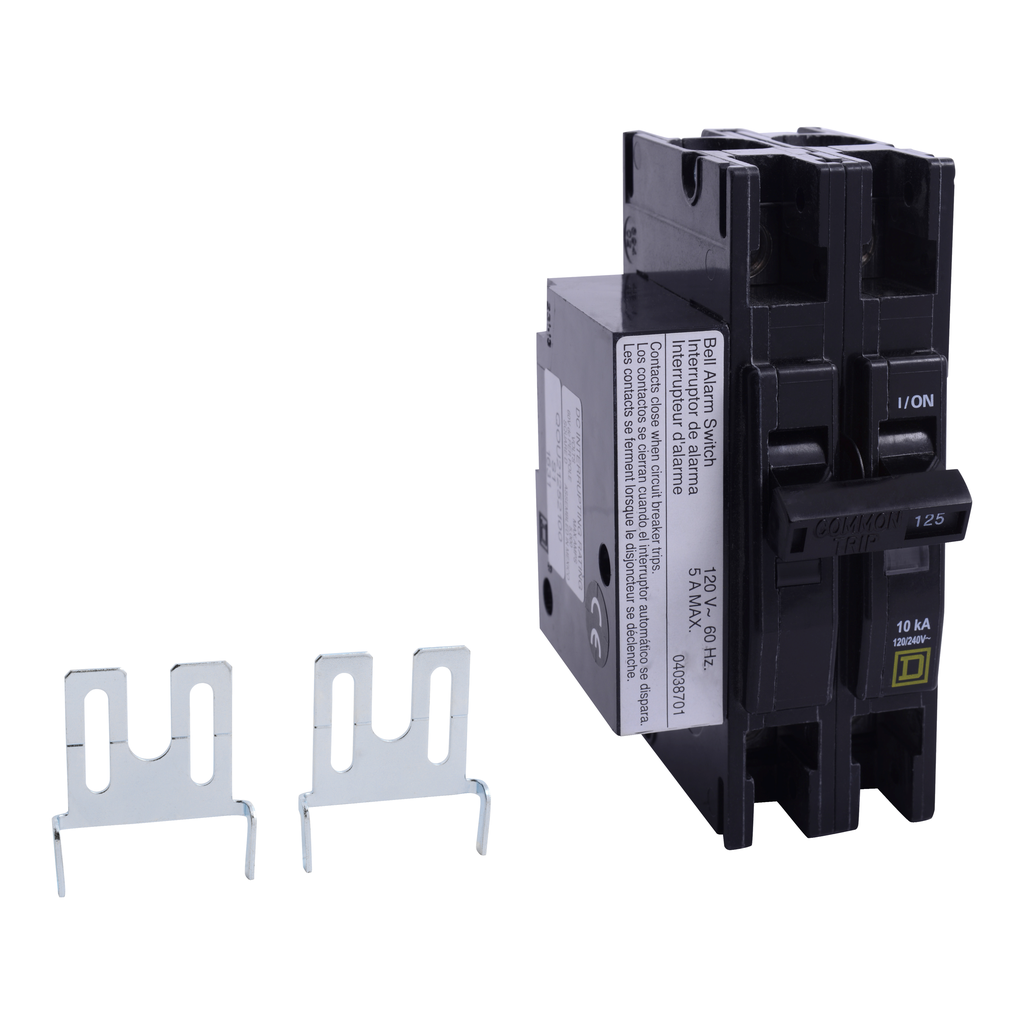

Circuit Breaker Application | HACR rated |
---|---|
Range Of Product | QOU |
Circuit Breaker Type | standard |
Product Or Component Type | miniature circuit-breaker |
Warranty | 18 months |
Height | 4.05 in |
Mounting Mode | unit mount |
Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
Line Rated Current | 60 A |
Awg Gauge | AWG 14...AWG 2 aluminium/copper |
Width | 2.25 in |
Electrical Connection |
|
Depth | 2.95 in |
[Ue] Rated Operational Voltage |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Halogen Content Performance | Halogen free product |
Product Certifications |
|
