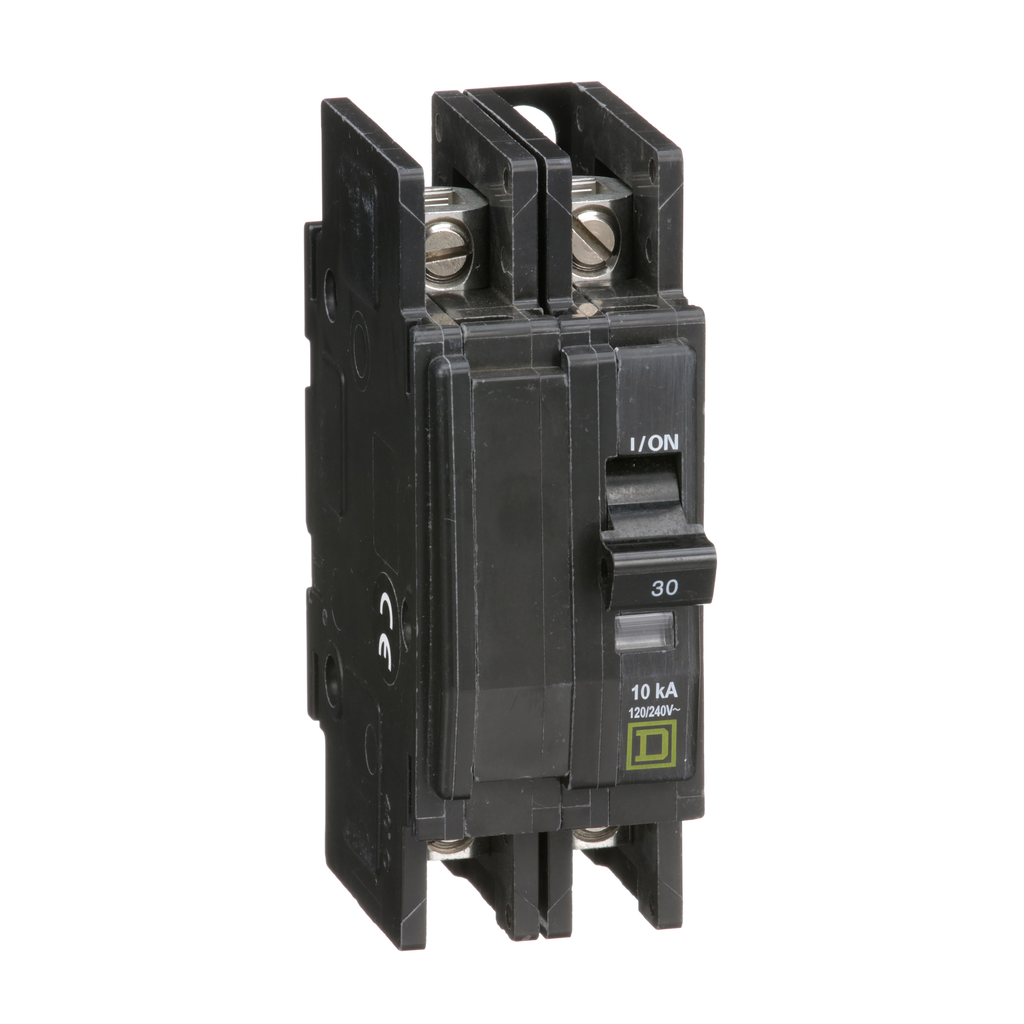

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 30A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 1.5 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | QOU |
---|---|
Circuit Breaker Type | standard |
Product Or Component Type | miniature circuit-breaker |
Circuit Breaker Application | HACR rated |
Warranty | 18 months |
Height | 4.05 in |
Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
Electrical Connection |
|
Mounting Mode | unit mount |
Line Rated Current | 30 A |
Awg Gauge | AWG 14...AWG 2 aluminium/copper |
Width | 1.5 in |
Depth | 2.95 in |
[Ue] Rated Operational Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free product |
Product Certifications |
|
