QOU215VH5283

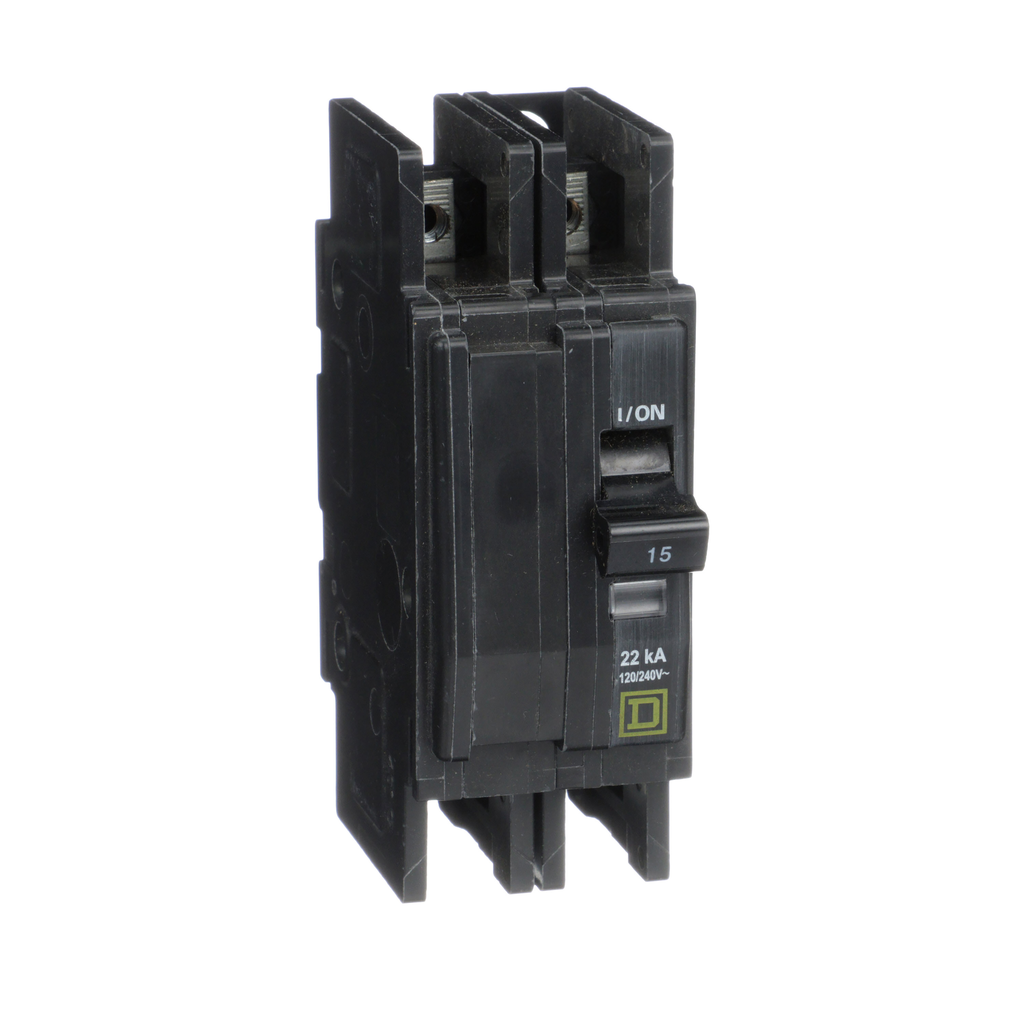

Mini circuit breaker, QOU, 15A, 2 pole, 120/240VAC, 22kA, ring terminal
QO™ and QOU Miniature Circuit Breakers, QOU215VH5283, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit. Comes with factory installed ring tongue terminal.QOU breakers are able to operate up to 22 kA short ciruit current. .
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Range Of Product | QOU |
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Warranty | 18 months |
| Height | 4.05 in |
| Mounting Mode | unit mount |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Line Rated Current | 15 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 1.5 in |
| Electrical Connection |
|
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
