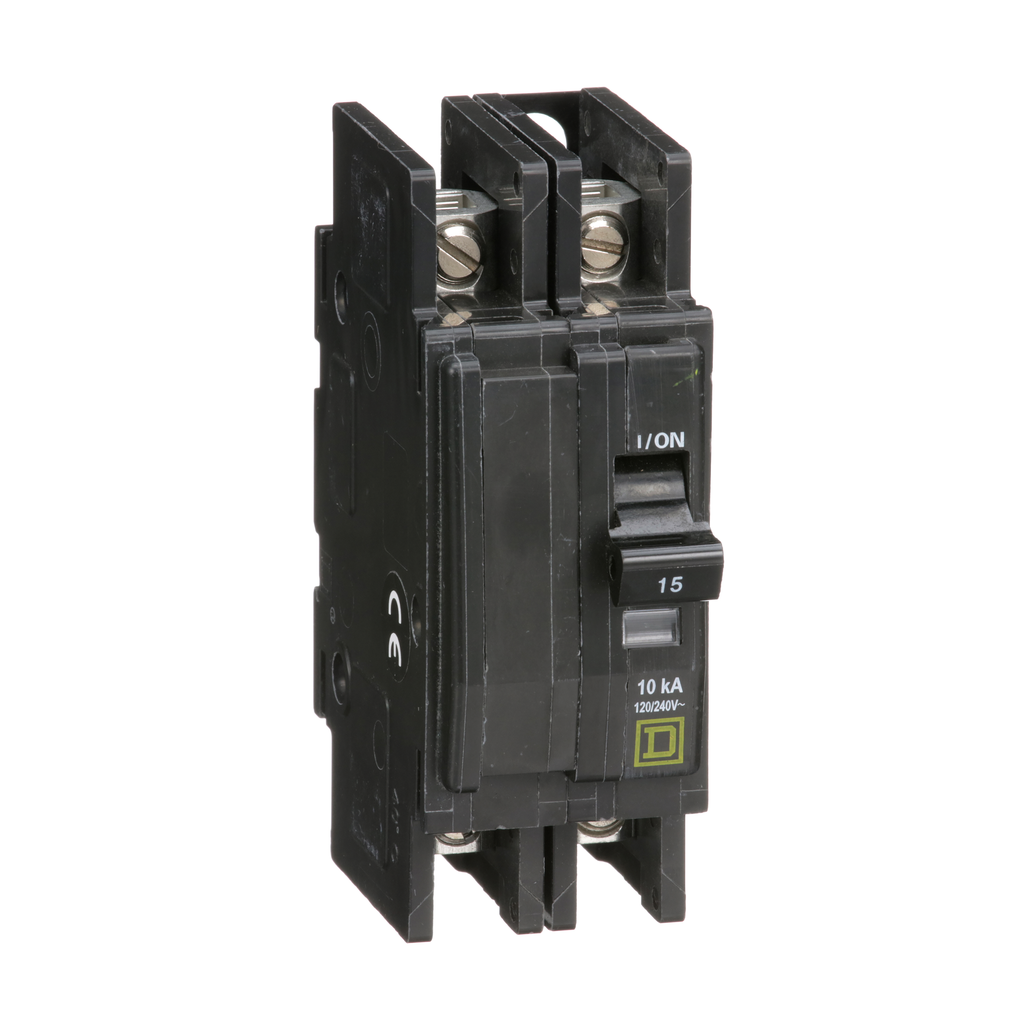

QOU215
Mini circuit breaker, QOU, 15A, 2 pole, 120/240VAC, 10kA
QO™ and QOU Miniature Circuit Breakers, QOU215, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QOU |
|---|---|
| Circuit Breaker Type | standard |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Warranty | 18 months |
| Height | 4.05 in |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Line Rated Current | 15 A |
| Awg Gauge | AWG 14...AWG 2 aluminium/copper |
| Width | 1.5 in |
| Depth | 2.95 in |
| [Ue] Rated Operational Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
