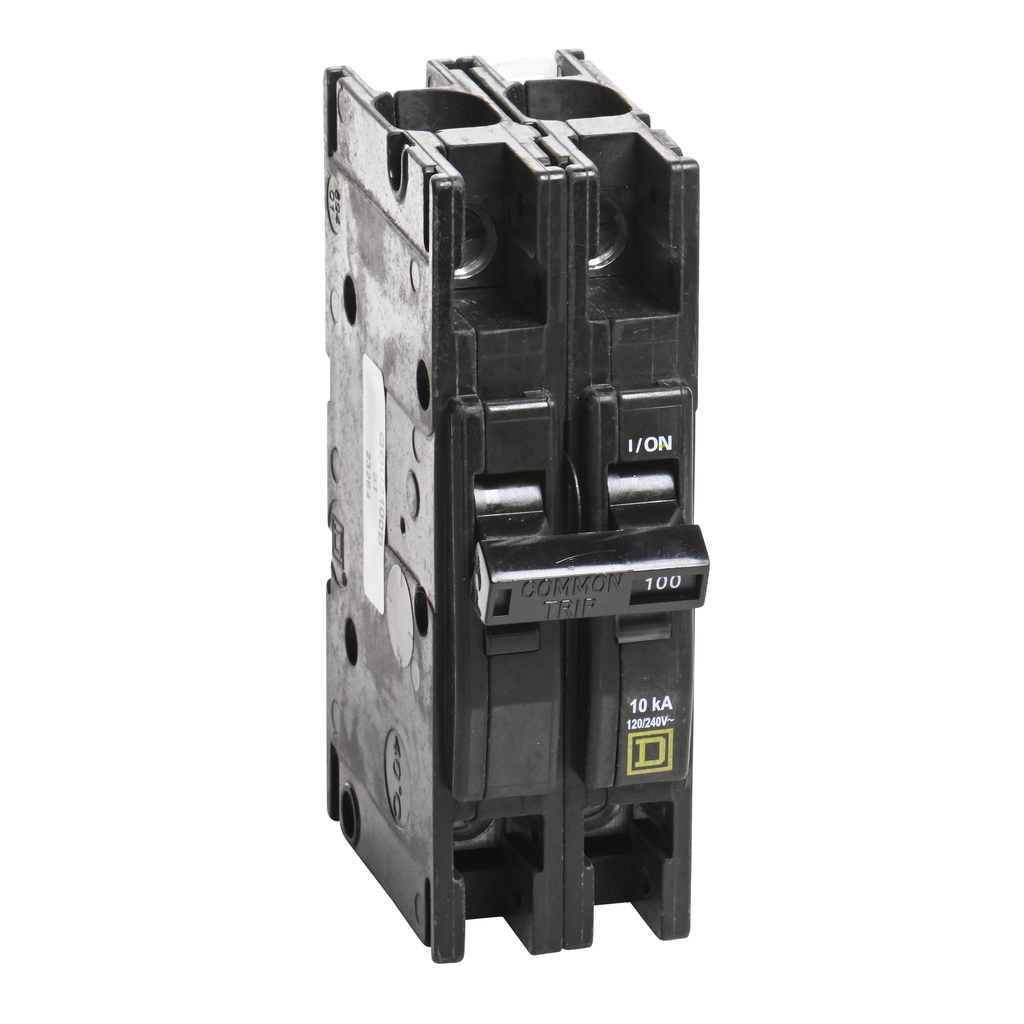

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 100A, 120/240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 12 AWG to 2/0 AWG copper or aluminum wire. QOU circuit breakers are UL Listed and CSA Certified. This is a bulk pack.
Brand: Schneider Electric
Add to Quote CatalogueCircuit Breaker Application | HACR rated |
---|---|
Range Of Product | QOU |
Circuit Breaker Type | standard |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | bulk |
Warranty | 18 months |
Height | 4.45 in |
Mounting Mode | unit mount |
Tightening Torque | 45-45 lbf.in (AWG 12...AWG 2/0) |
Line Rated Current | 100 A |
Awg Gauge | AWG 12...AWG 2/0 aluminium/copper |
Width | 0.75 in |
Electrical Connection |
|
Depth | 2.95 in |
[Ue] Rated Operational Voltage |
|
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Halogen Content Performance | Halogen free product |
Product Certifications |
|
