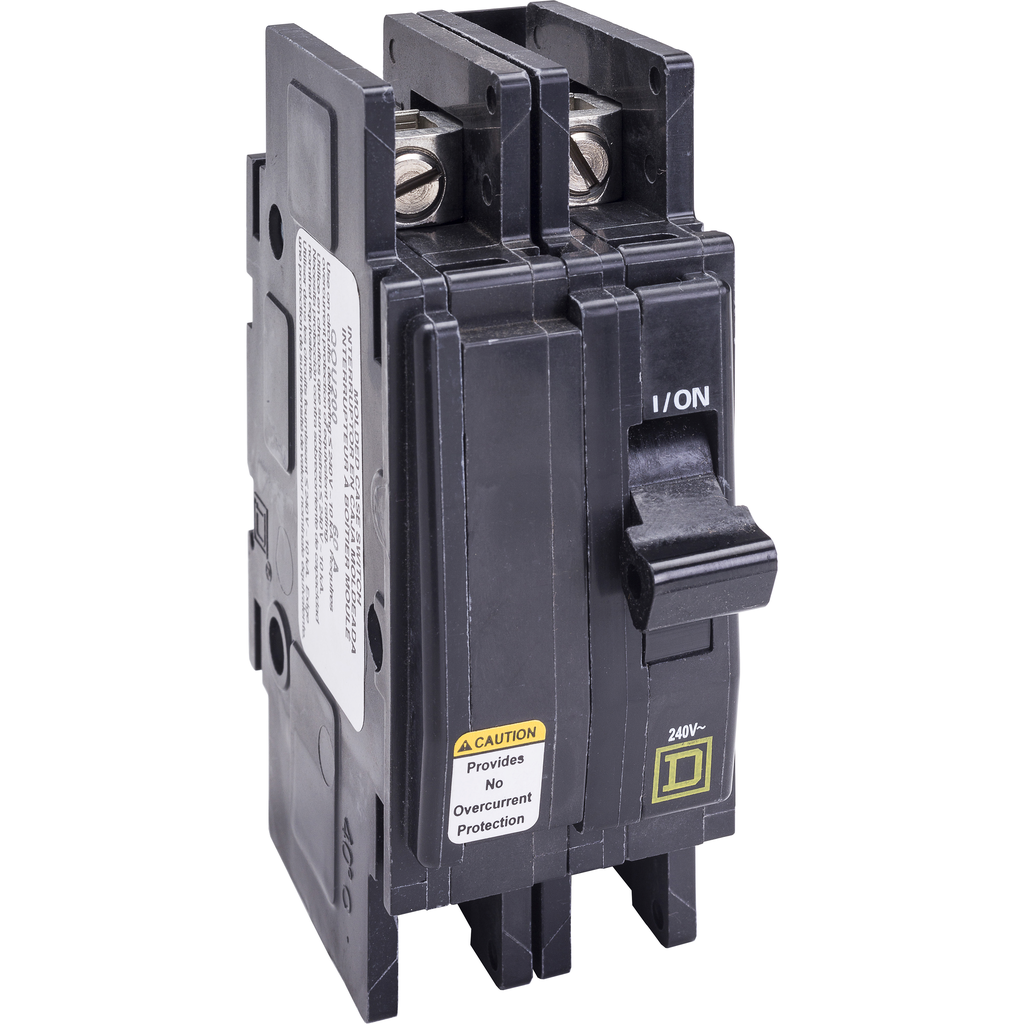

QOU200
Mini switch, QOU, non-automatic, 60A, 2 pole, 240 VAC, 10kA
QO™ and QOU Miniature Circuit Breakers, QOU200, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Application | HACR rated |
|---|---|
| Range Of Product | QOU |
| Product Or Component Type | switch |
| Warranty | 18 months |
| Height | 4.05 in |
| Mounting Mode | unit mount |
| Tightening Torque | 45-45 lbf.in (AWG 14...AWG 2) |
| Line Rated Current | 60 A |
| Awg Gauge | AWG 12...AWG 2/0 aluminium/copper |
| Width | 1.5 in |
| Electrical Connection |
|
| Depth | 2.95 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
Documents
- Spec Sheet
- Square D QOU Miniature Circuit Breakers and Switches Catalog - 0720CT9401R105 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Series 1 QOU Circuit Breakers and Switches Instruction Sheet - 48840-001-02 (pdf)
