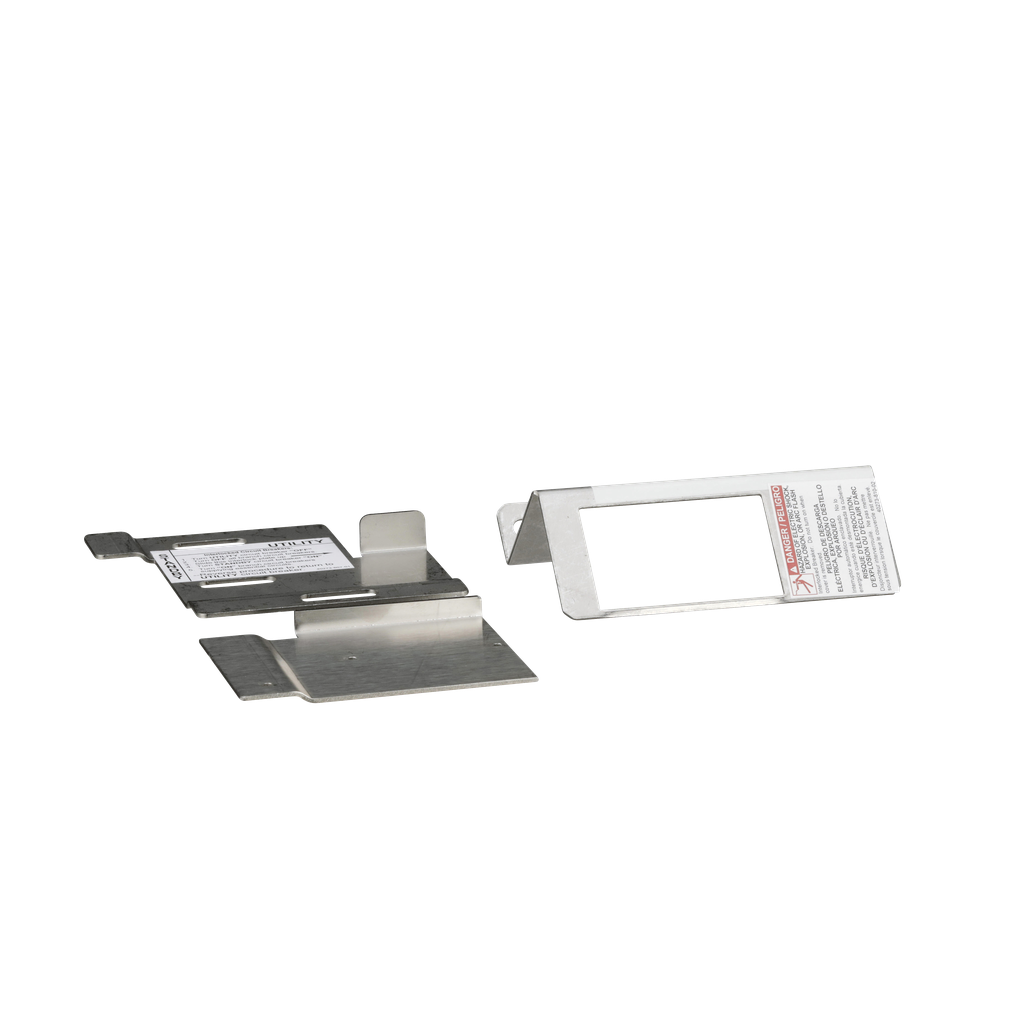

QO generator panels are for the manual transfer from utility to generator power. QO generator panels are for back-up power applications. This sub-panel connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuits dedicated for back-up power. This QO generator panel uses two factory installed, two pole QO circuit breakers. One is fed by the utility, while the second circuit breaker is back-fed to the back-up power source, such as a generator. Power source switching is easy. Simply turn the main power breaker to the "OFF" position and then turn the generator fed breaker to the "ON" position. A factory installed mechanical interlock prevents both main breakers being in the "ON" position at the same time. This generator circuit breaker interlock kit is for use on "S2" NEMA 3R QO generator load centers. It is used to interlock a QOM2 two pole main circuit breaker of the load center (150A to 225A) with a QO two pole (15A to 125A) branch circuit breaker. This interlock kit is packaged in clam shell.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | QO |
---|---|
Product Or Component Type | interlock |
Warranty | 18 months |
Height | 1.7 in |
Width | 5 in |
Depth | 7.3 in |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2101006 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
