QOM22225NS

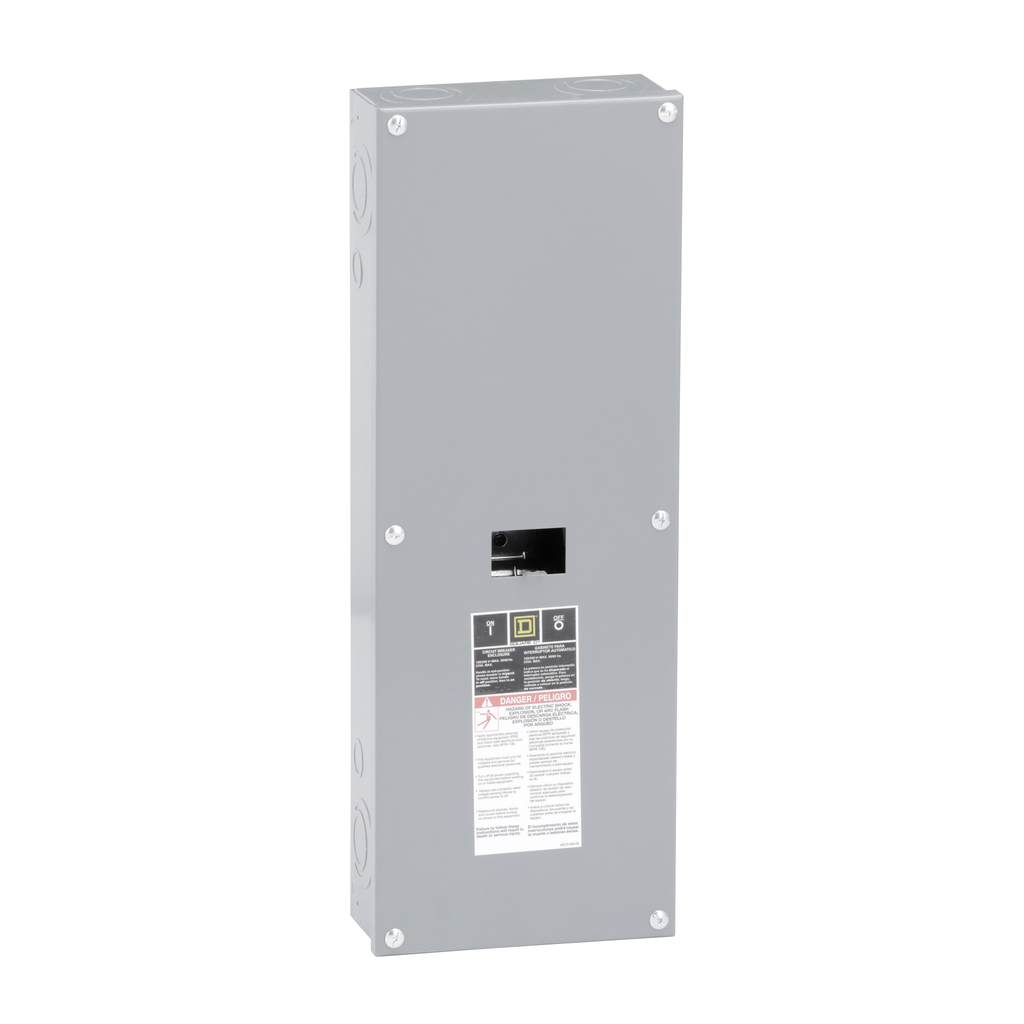

QOM2 Circuit Breaker Enclosure, 2P, Type 1, Surface Mount, 100-225A, CSA, UL
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This circuit breaker enclosure has a current rating of 225A and 2 pole. It is rated at NEMA 1 and uses QOM2 breakers. The product has a surface mount and is UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | enclosure |
| Warranty | 18 months |
| Product Certifications |
|
| Line Rated Current | 100-225 A |
| Height | 608 mm |
| Device Mounting | surface |
| Poles Description | 2P |
| Line Rated Current | 225 A |
| Enclosure Material | steel |
| Width | 217 mm |
| Depth | 100 mm |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
