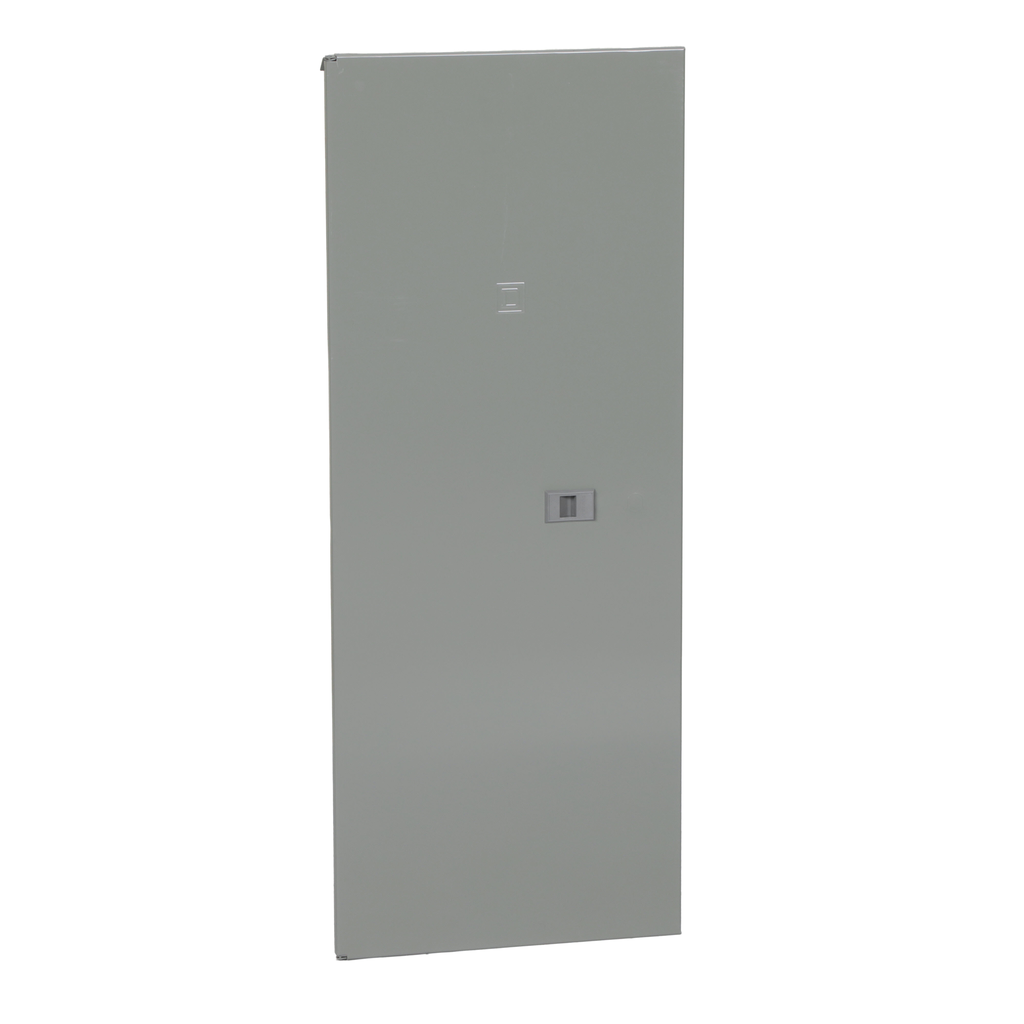

Replacement cover, QO, for 60 space load center, door, flush
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories for your power needs. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center accessory is a door cover used for a unit with 60 spaces. This system is for 60 spaces NEMA 1 enclosures.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | door kit |
| Warranty | 18 months |
| Product Destination | door |
| Height | 38.55 in |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded sheet steel |
| Width | 15.23 in |
| Depth | 0.56 in |
| Number Of Spaces | 60 |
| Net Weight | 3.630 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | UL Listed |
| Nema Degree Of Protection | NEMA 1 indoor |
Documents
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- QO Load Centers and Circuit Breakers Brochure - 1100BR1201 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
