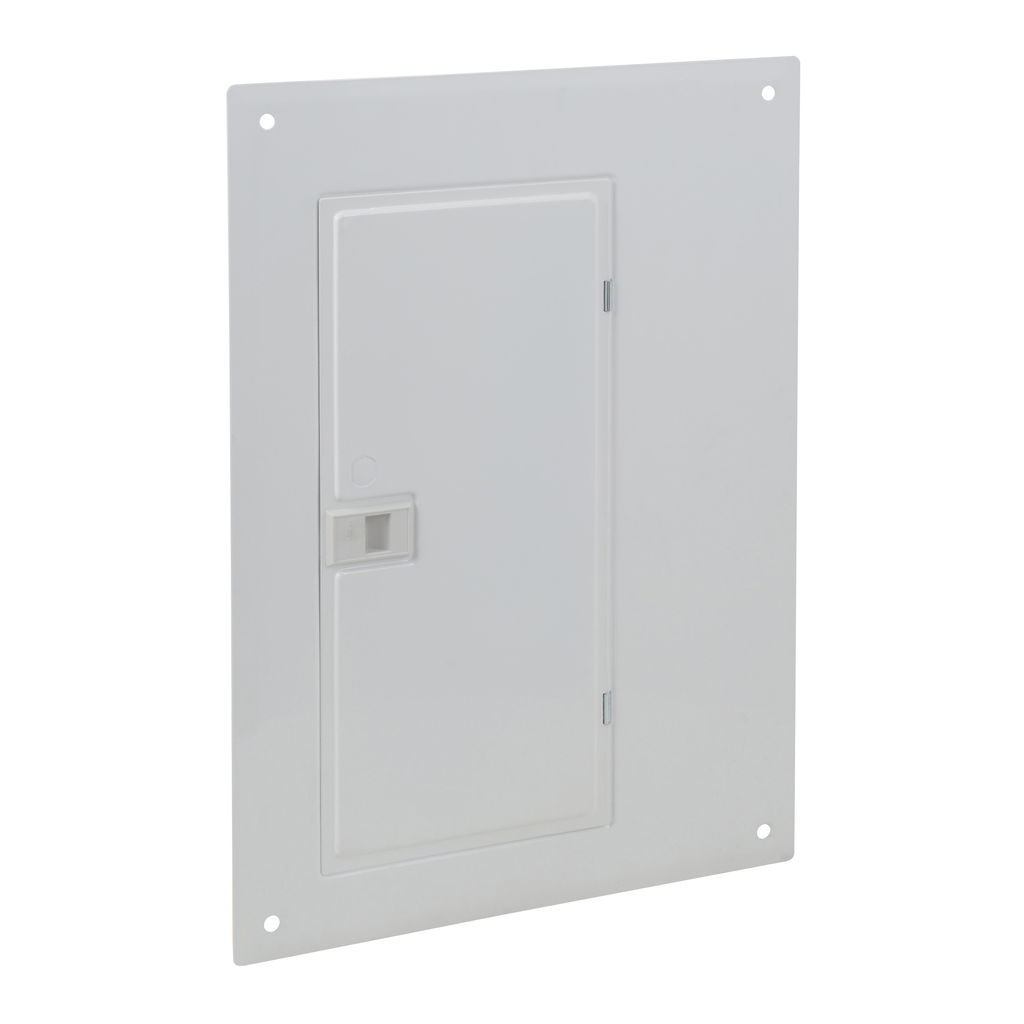

Replacement cover, QO, for 20 space load center, flush, wide gutter, white
QO load centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO load centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This flush mounting load center cover with a wide gutter is painted white. This cover is for an indoor load center rated NEMA 1 with 20 spaces. The load center cover is 22.13 inches tall, 15.44 inches wide and 0.7 inches deep. This cover must be purchased in multiples of 100.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | Load Center Cover |
| Warranty | 18 months |
| Cover Type | flush cover |
| Height | 22.13 in |
| Surface Finish | baked enamel White |
| Width | 15.44 in |
| Depth | 0.01 in |
| Product Compatibility | for indoor load center |
| Number Of Spaces | 20 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
