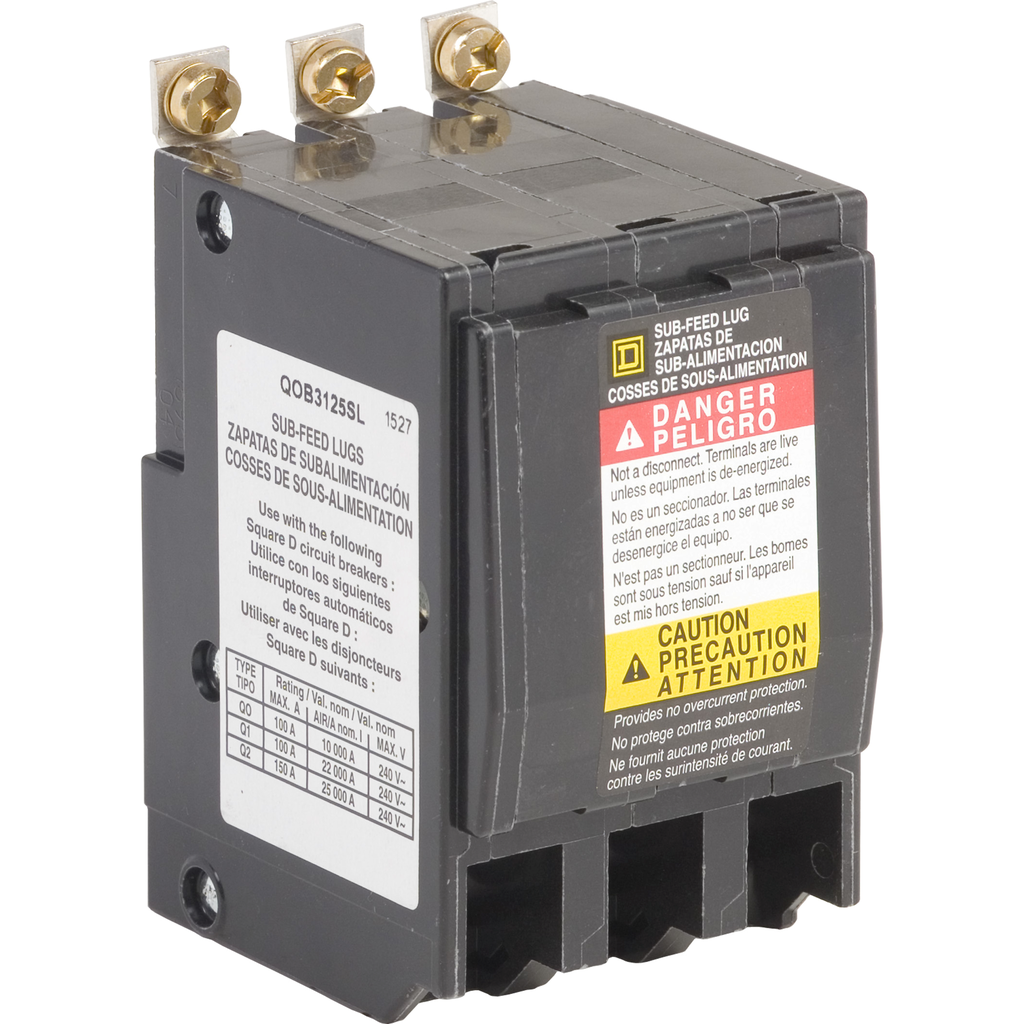

QOB3125SL
Mini circuit breaker accessory, QO, lug kit, 125A, 3 pole, 3 spaces, subfeed, bolt on
Specifications
| Range Of Product | QO |
|---|---|
| [Ue] Rated Operational Voltage | 240 V AC |
| Line Rated Current | 125 A |
| Product Or Component Type | lug kit |
| Number Of Spaces | 3 |
| Phase | 3 phase |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 3.500 in |
| Mounting Mode | bolt-on |
| Awg Gauge | AWG 12...AWG 2/0 copper or aluminium |
| Width | 2.241 in |
| Depth | 2.310 in |
| Number Of Poles | 3 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation |
|
