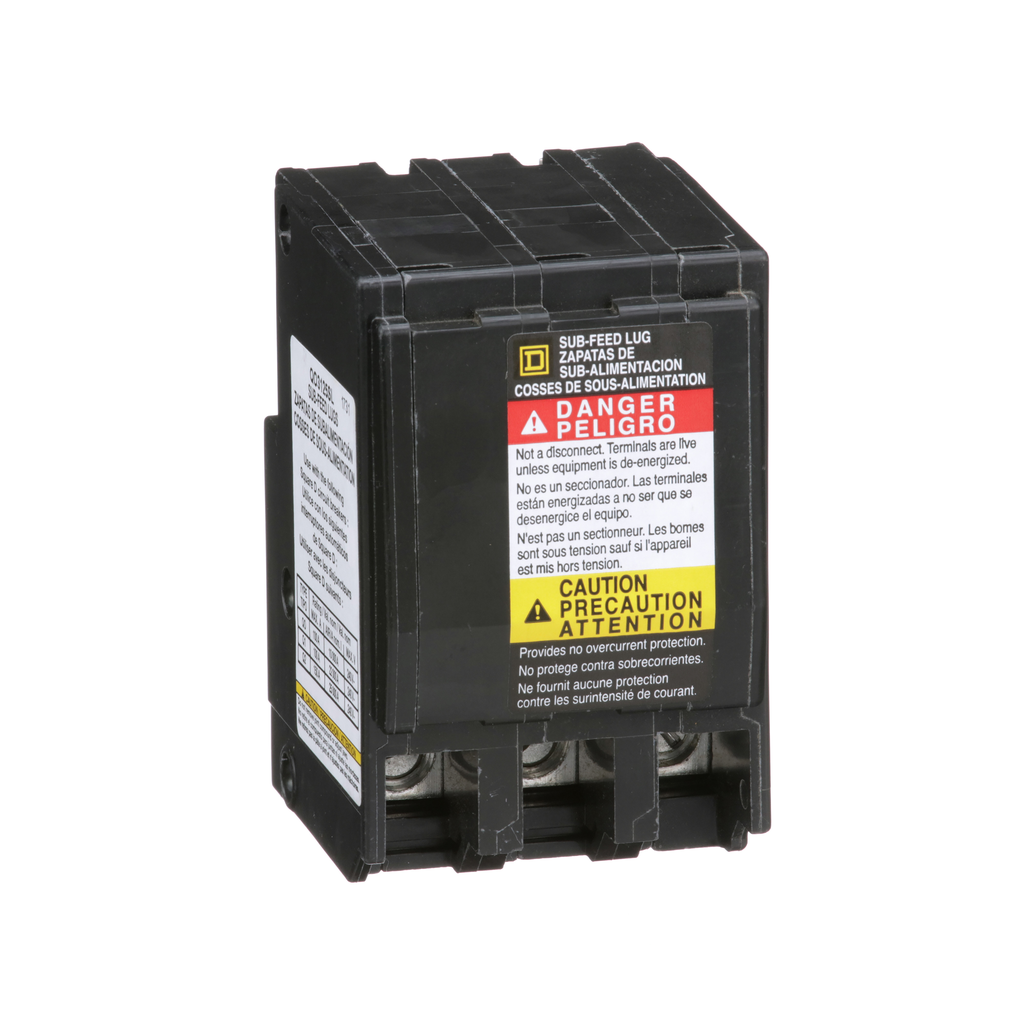

QO3125SL
Mini circuit breaker accessory, QO, lug kit, 125A, 3 pole, 3 spaces, subfeed
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center accessory is a subfeed lug kit rated for 125 A, 3 pole, and 3 spaces.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| [Ue] Rated Operational Voltage | 240 V AC |
| Line Rated Current | 125 A |
| Product Or Component Type | lug kit |
| Number Of Spaces | 3 |
| Phase | 3 phase |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 3.500 in |
| Mounting Mode | plug-in |
| Awg Gauge | AWG 12...AWG 2/0 copper or aluminium |
| Width | 2.241 in |
| Depth | 2.310 in |
| Number Of Poles | 3 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation |
|
