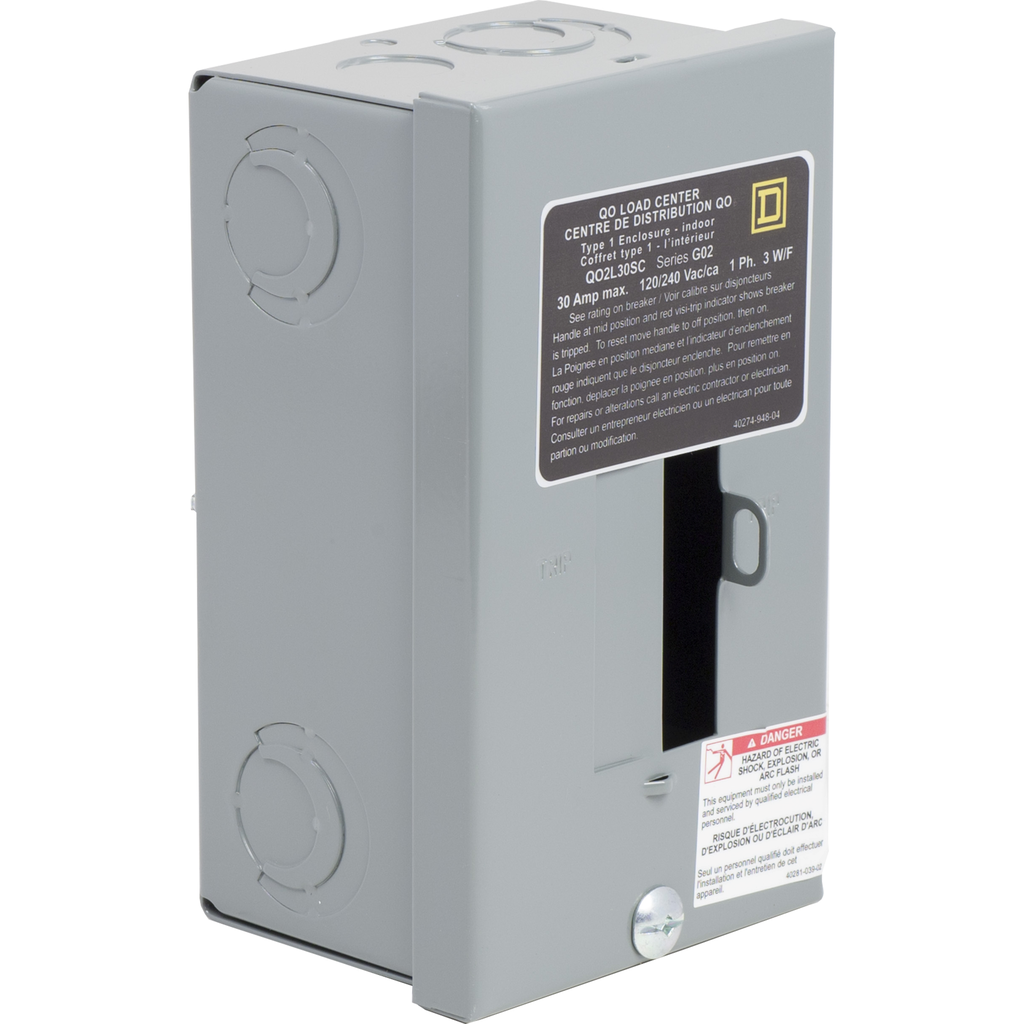

Load center, QO, 1 phase, 2 spaces, 2 circuits, 30A fixed main lugs, NEMA1, surface cover, CSA
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 30A fixed main lugs in a NEMA 1 enclosure. It also includes a surface cover, and is CSA rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Cover Type | surface cover |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
| Warranty | 18 months |
| Height | 167 mm |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 0 |
| Tightening Torque | main lugs 35 lb.in, AWG 12...AWG10, aluminium/copper |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Material | tin plated aluminium busbar |
| Surface Finish | baked enamel Gray |
| Line Rated Current | 30 A |
| Enclosure Material | welded sheet steel |
| Awg Gauge |
|
| Wiring Configuration | 3-wire |
| Width | 94 mm |
| Electrical Connection | lugs |
| Depth | 75 mm |
| Number Of Circuits | 2 |
| Number Of Spaces | 2 |
| Load Center Type | Fixed Mains (lugs) |
| Device Composition | grounding bar (ordered separately) |
| Phase | 1 phase |
| Box Number | 2 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406009EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1 indoor |
| Ambient Air Temperature For Operation |
|
