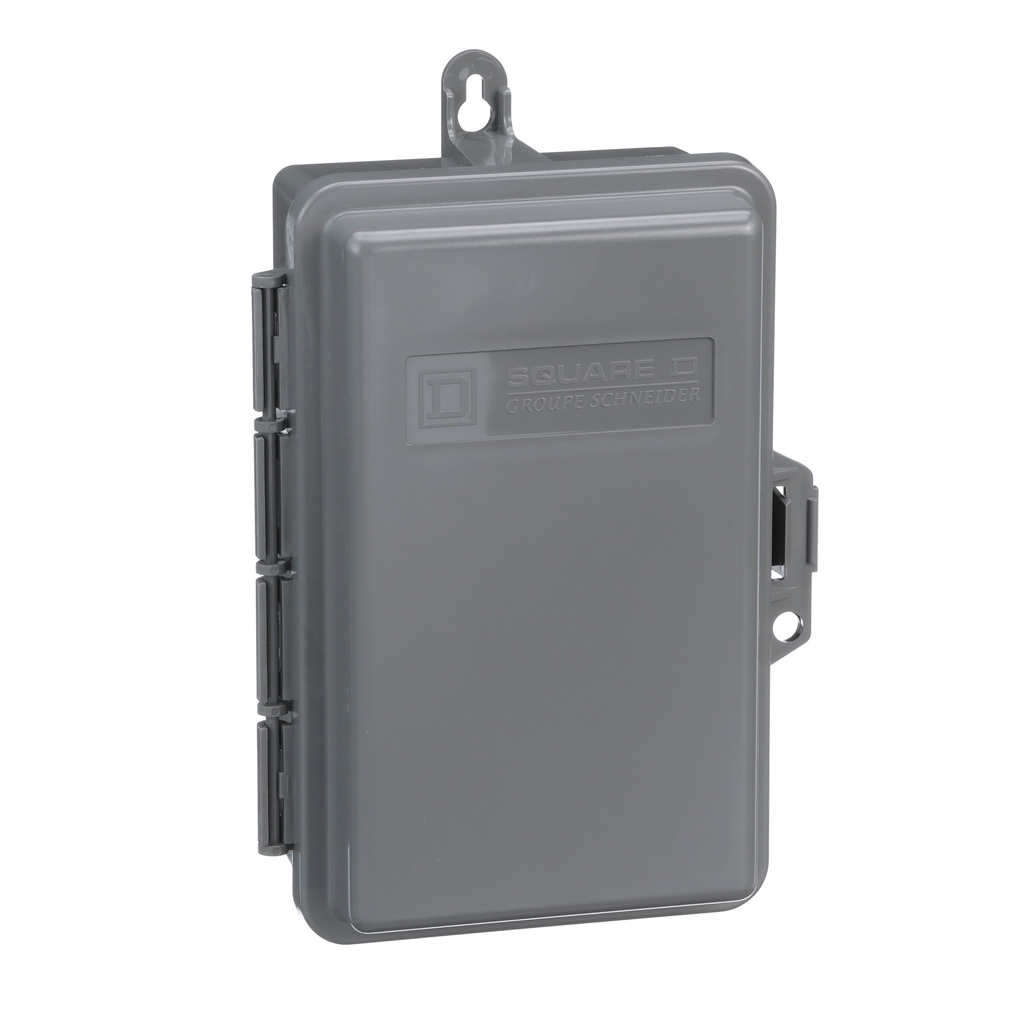

Load center, QO, 1 phase, 2 spaces, 4 circuits, 60A fixed main lugs, NEMA3R, gnd bar, nonmetalic
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 4 circuits. This system provides 60A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is nonmetalic.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | Load Center |
| Load Center Type | Fixed Mains (lugs) |
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 223 mm |
| Enclosure Type | enclosure |
| Number Of Circuits | 4 |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Number Of Tandem Circuit Breakers | 2 |
| Ambient Air Temperature For Operation |
|
| Line Rated Current | 60 A |
| Enclosure Material | non-metallic |
| Width | 166 mm |
| Wiring Configuration | 3-wire |
| Device Composition | grounding bar (factory installed) |
| Box Number | 1NM |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
