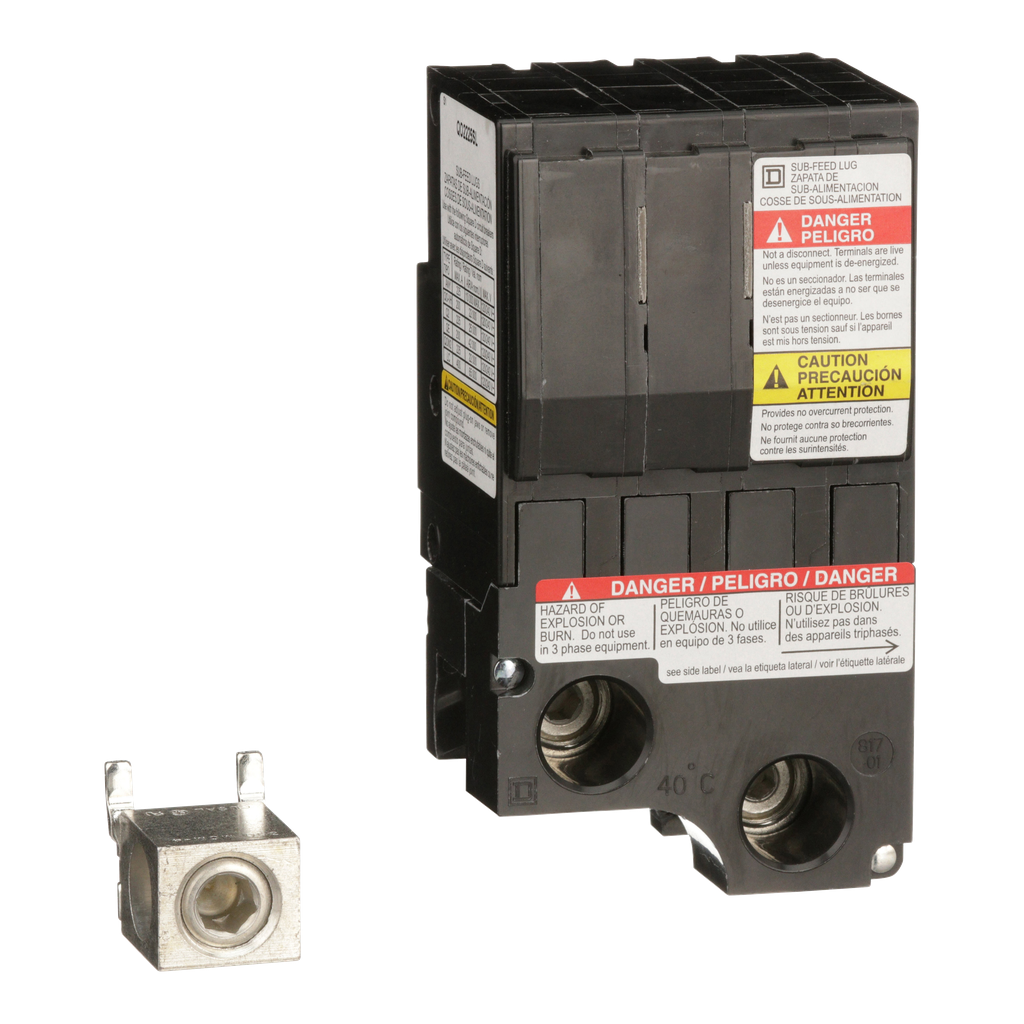

QO2225SL - Mini circuit breaker accessory, QO, lug kit, 225A, 2 pole, 2 spaces, subfeed

QO2225SL

Mini circuit breaker accessory, QO, lug kit, 225A, 2 pole, 2 spaces, subfeed

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 225 A, 2 pole, and 4 spaces. Lugs will accept 4 AWG to 300 kcmil aluminum or copper wire.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	QO
[Ue] Rated Operational Voltage	120/240 V AC
Line Rated Current	225 A
Product Or Component Type	lug kit
Number Of Spaces	4
Phase	2 phases
Warranty	18 months
Product Certifications	cURus
Height	3.500 in
Mounting Mode	plug-in
Awg Gauge	AWG 4...300 kcmil copper or aluminium
Width	2.988 in
Depth	2.310 in
Number Of Poles	4
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Halogen Content Performance	Halogen free product
Ambient Air Temperature For Operation	-5 °C 40 °C
