QO2125SL

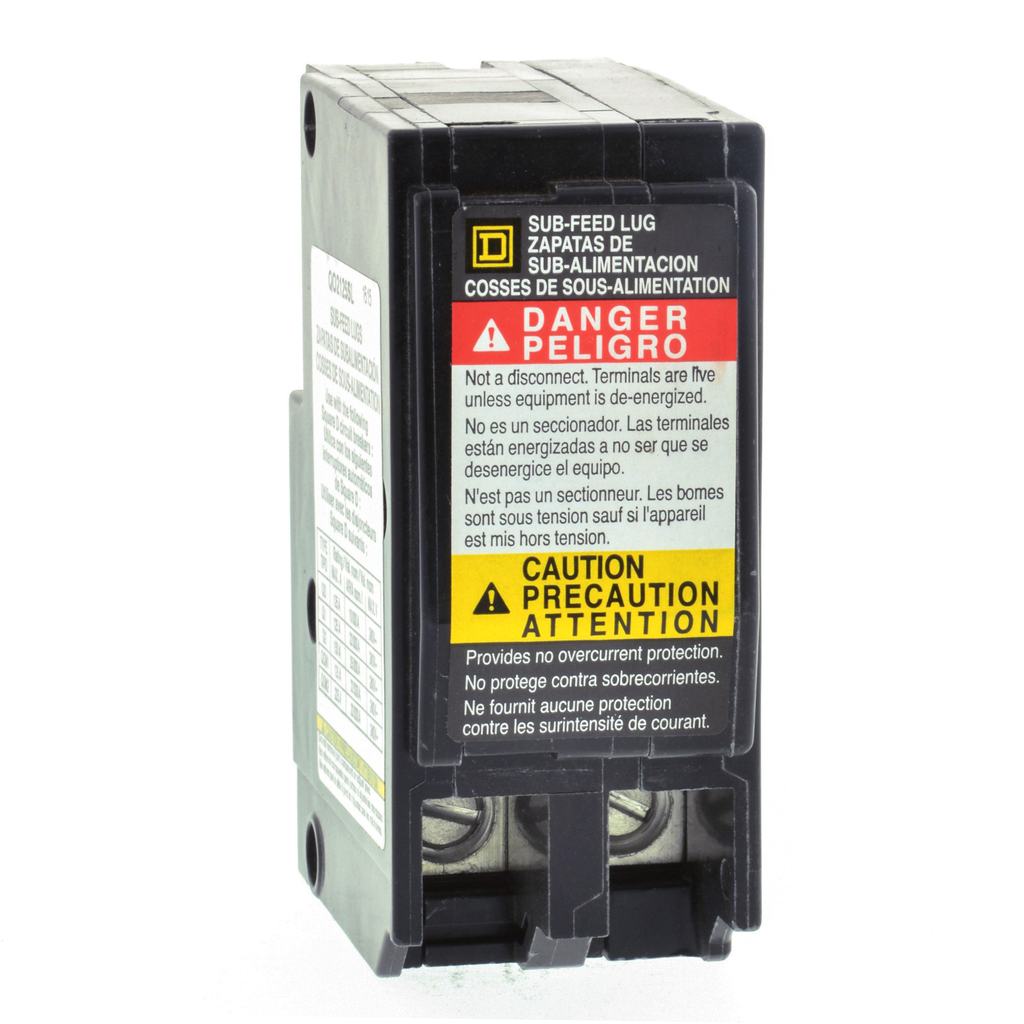

Mini circuit breaker accessory, QO, lug kit, 125A, 2 pole, 2 spaces, subfeed
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 125 A, 2 pole, and 2 spaces. Lugs will accept 12 AWG to 2/0 AWG aluminum or copper wire.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| [Ue] Rated Operational Voltage | 240 V AC |
| Line Rated Current | 125 A |
| Product Or Component Type | lug kit |
| Number Of Spaces | 2 |
| Phase | 2 phases |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 3.500 in |
| Mounting Mode | plug-in |
| Awg Gauge | AWG 12...AWG 2/0 copper or aluminium |
| Width | 1.494 in |
| Depth | 2.310 in |
| Number Of Poles | 2 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation |
|
