QO200TRNM

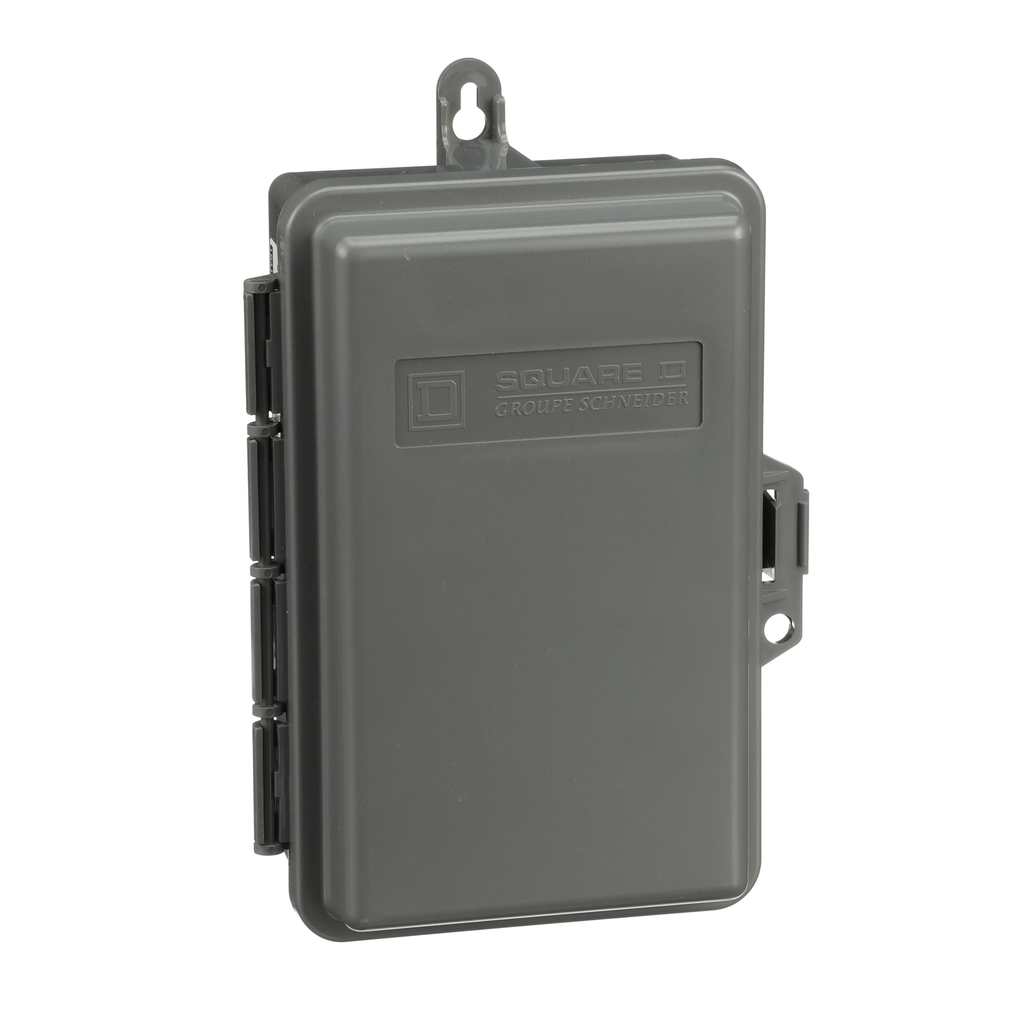

Enclosed molded case switch, QO, 60A, 2 pole, 240VAC, 22kA, air conditioning, NEMA 3R, nonmetal
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 60A and 2 pole. It has 22kA rating, 240VAC, and NEMA 3R. This unit is used with air conditioning systems and is nonmetallic. This product is UL listed. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type |
|
| Warranty | 18 months |
| Product Certifications | UL Listed |
| Height | 222 mm |
| Phase | 1 phase |
| Net Weight | 0.862 kg |
| Type Of Installation | enclosed outdoor |
| Ambient Air Temperature For Operation | 40 °C |
| Line Rated Current | 60 A |
| Width | 165 mm |
| Depth | 99 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Air Conditioning Disconnects Molded Case Switches Catalog - 3150CT0401 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D Combination AFCI Circuit Breakers Brochure - 0700BR1202 (pdf)
- Square D Air Conditioning Disconnects Brochure - 3150BR9801R3 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
