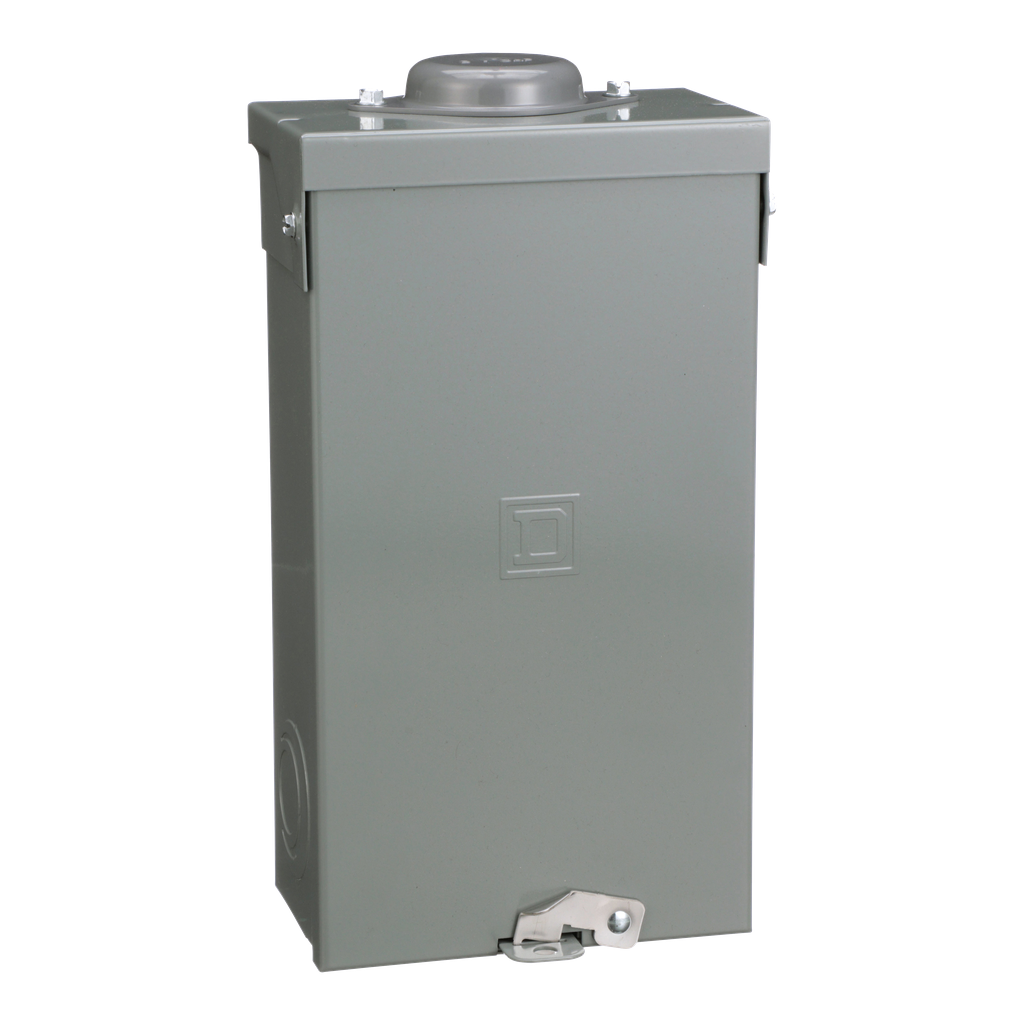

Enclosed molded case switch, QO, 100A, 2 pole, 240VAC, 10kA, plug in mount, NEMA 3R
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 100A and 2 pole. It has 10kA rating, 240VAC, and NEMA 3R. This product is UL listed. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | QO |
|---|---|
| Product Or Component Type | enclosed molded case switch |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 89 mm |
| Poles Description | 2P |
| Line Rated Current | 100 A |
| Width | 38 mm |
| Depth | 74 mm |
| Net Weight | 4.010 kg |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
