QO1PJ15

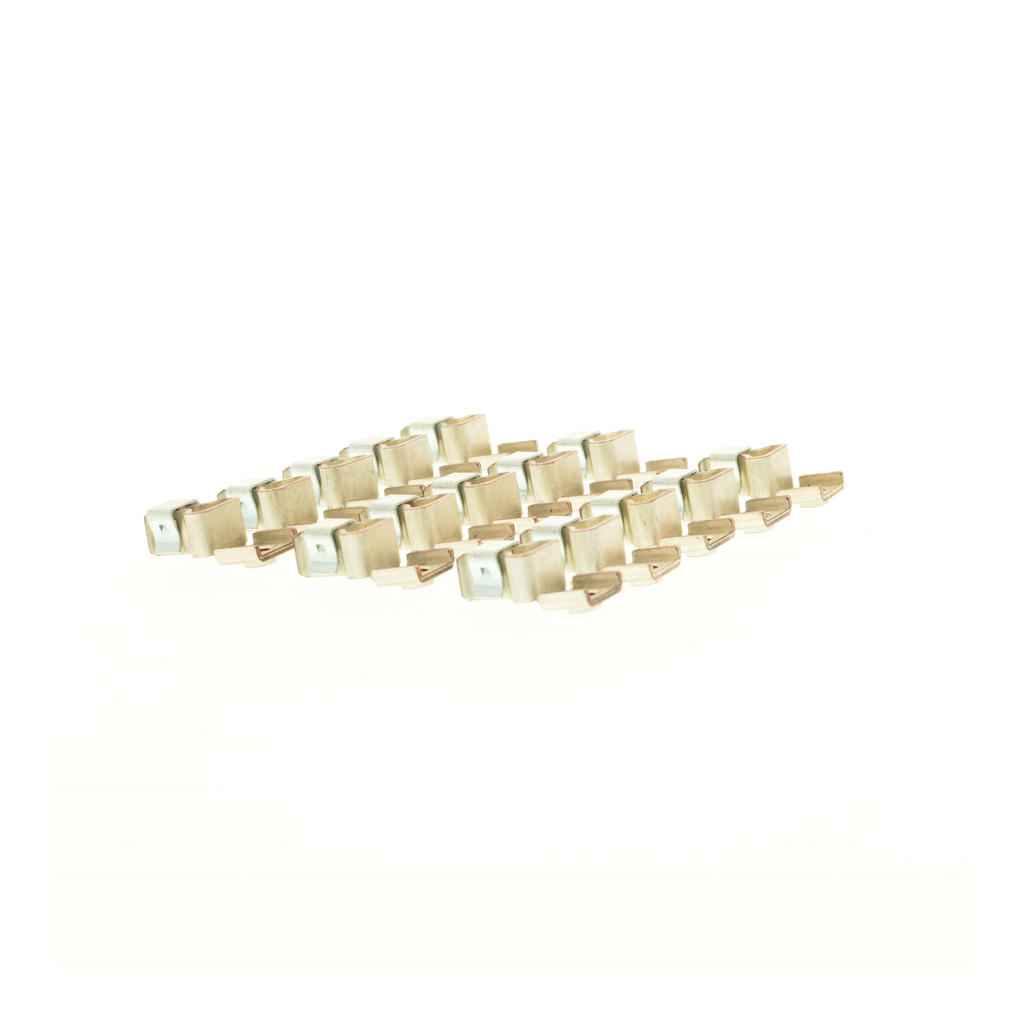

NQ Panelboard, jaw kit, set of 15
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO mini circuit breaker accessory kit consists of 15 jaws that can be installed on QOB circuit breakers.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Quantity Per Set | 15 pieces |
| Product Or Component Type | jaw kit |
| Tightening Torque | 2.3-3.4 N.m |
| Product Destination | QO circuit breaker |
| Number Of Poles | 1 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
Documents
- Spec Sheet
- IP2X Fingersafe Barriers for NQ Panelboards - Brochure - 1640BR1701_NQ_FingerSafe1-2019 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- QOB Bolt-On Circuit Breaker Installation Instructions - 80043-809-01 (pdf)
- QO1PJ15 Jaw Accessory Kit Installation for QOB Circuit Breaker - Installation Instructions - 80043-810-01_3 (pdf)
