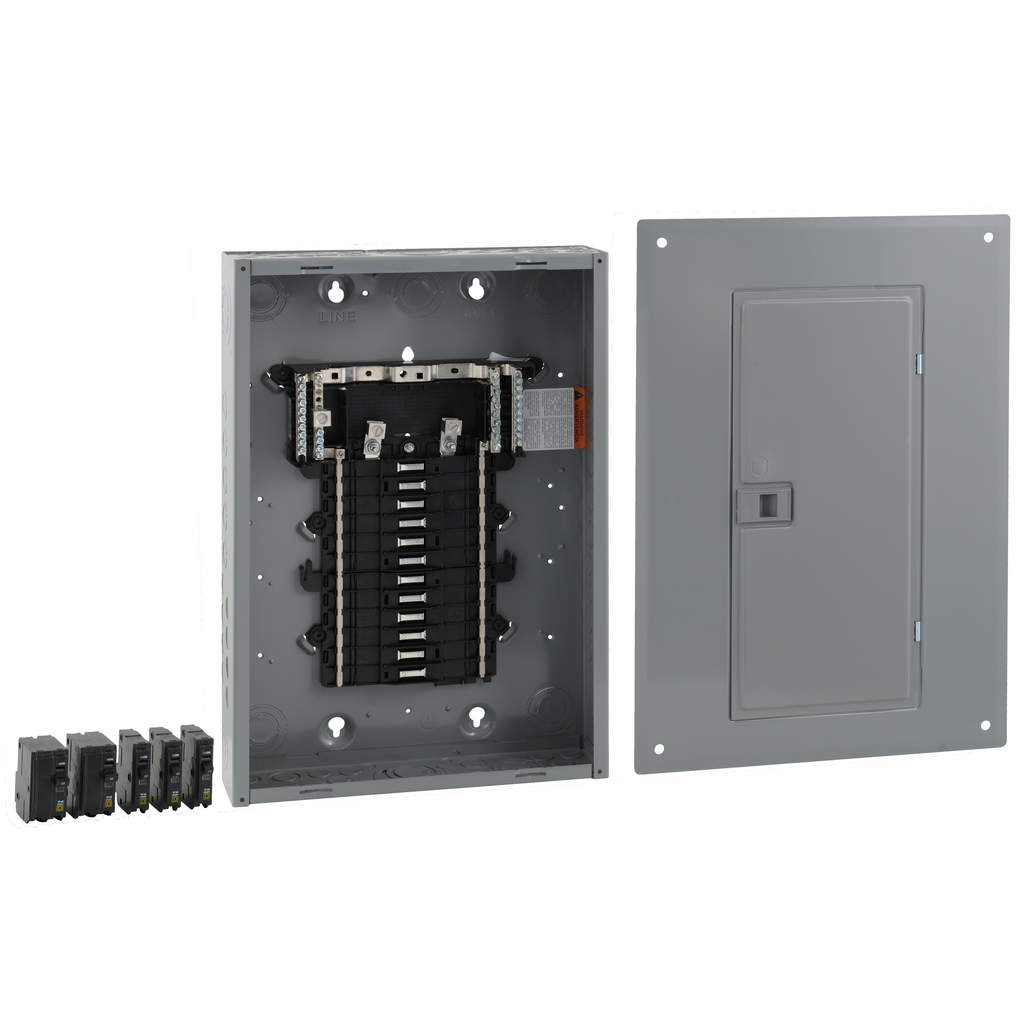

QO® Circuit Breaker Load Centers, QO124L125PGCVP, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated. This product is a value pack.
Brand: Schneider Electric
Add to Quote CatalogueCover Type | combination flush/surface cover |
---|---|
Range Of Product | QO |
Provided Equipment |
|
Product Or Component Type | Load Center |
Height | 531 mm |
Short-Circuit Current | 65 kA |
Number Of Tandem Circuit Breakers | 0 |
Tightening Torque | main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper |
Material | tin plated copper busbar |
Surface Finish | baked enamel Gray |
Line Rated Current | 125 A |
Enclosure Material | welded sheet steel |
Awg Gauge | AWG 6...AWG 2/0 aluminium/copper |
Width | 362 mm |
Wiring Configuration | 3-wire |
Electrical Connection | lugs |
Number Of Circuits | 24 |
Number Of Spaces | 24 |
Load Center Type | PoN Convertible Mains (lugs) |
Device Composition | grounding bar included (not installed) |
Phase | 1 phase |
Box Number | 7 |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2101006 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | UL Listed |
Nema Degree Of Protection | NEMA 1 indoor |
Ambient Air Temperature For Operation |
|
