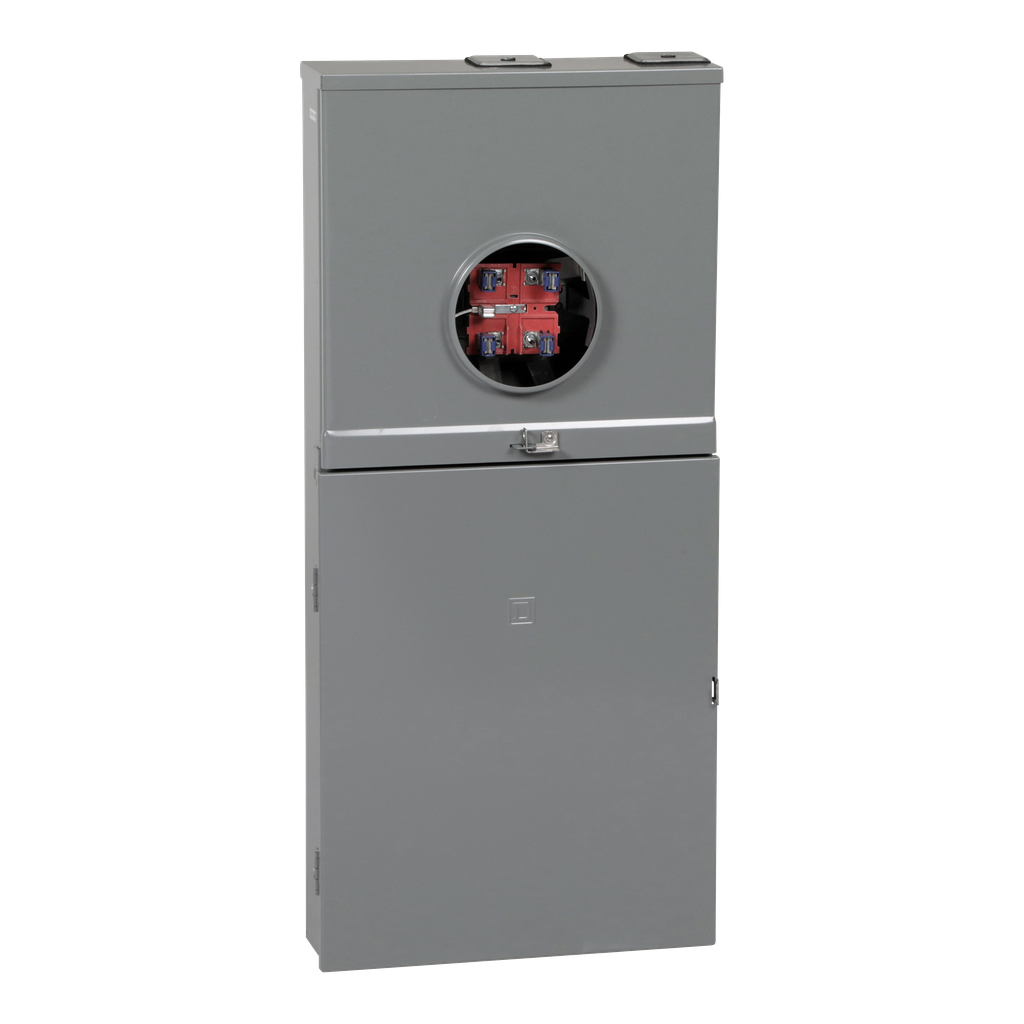

Square D meter mains devices are single phase power distribution panels ideal for residential use for when the local codes require the service disconnect to be located outside the dwelling. These devices come with a meter socket that supports a standard utility meter and a main disconnect breaker and include provisions for field installation of service disconnect(s) to feed downstream devices. Square D meter mains products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This meter main is designed for QO range, has 8 spaces, is rated at 150A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses feed thru lugs on both the line side and service ground side of the device, has a wire range of 6 AWG–350 kcmil on the line side and 8-2/0 AWG on the service ground side. The dimensions for this product are 41.16 in (H) x 18.76 in (W) x 5.41 in (D).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | QO |
---|---|
Provided Equipment | circuit-breaker 1 ) 2P 150 A 120/240 V AC main supply ready assembled |
Product Or Component Type | Meter Mains |
Warranty | 18 months |
Height | 41.16 in |
Short-Circuit Current | 22 kA |
Tightening Torque |
|
Number Of Tandem Circuit Breakers | 8 |
Hub Type | A |
Branch Circuit Breaker Rated Current | 150 A |
Bypass Type | no bypass |
Meter Socket Type | ringless |
Service Feed Location |
|
Service Disconnect Rated Current | 150 A |
Line Rated Current | 150 A |
Awg Gauge |
|
Width | 18.76 in |
Electrical Connection |
|
Depth | 5.41 in |
Number Of Circuits | 16 |
Number Of Spaces | 8 |
Network Number Of Phases | 1 |
Device Composition | service disconnect (factory installed) |
Device Mounting | surface outdoor) |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications | UL E-6294 |
