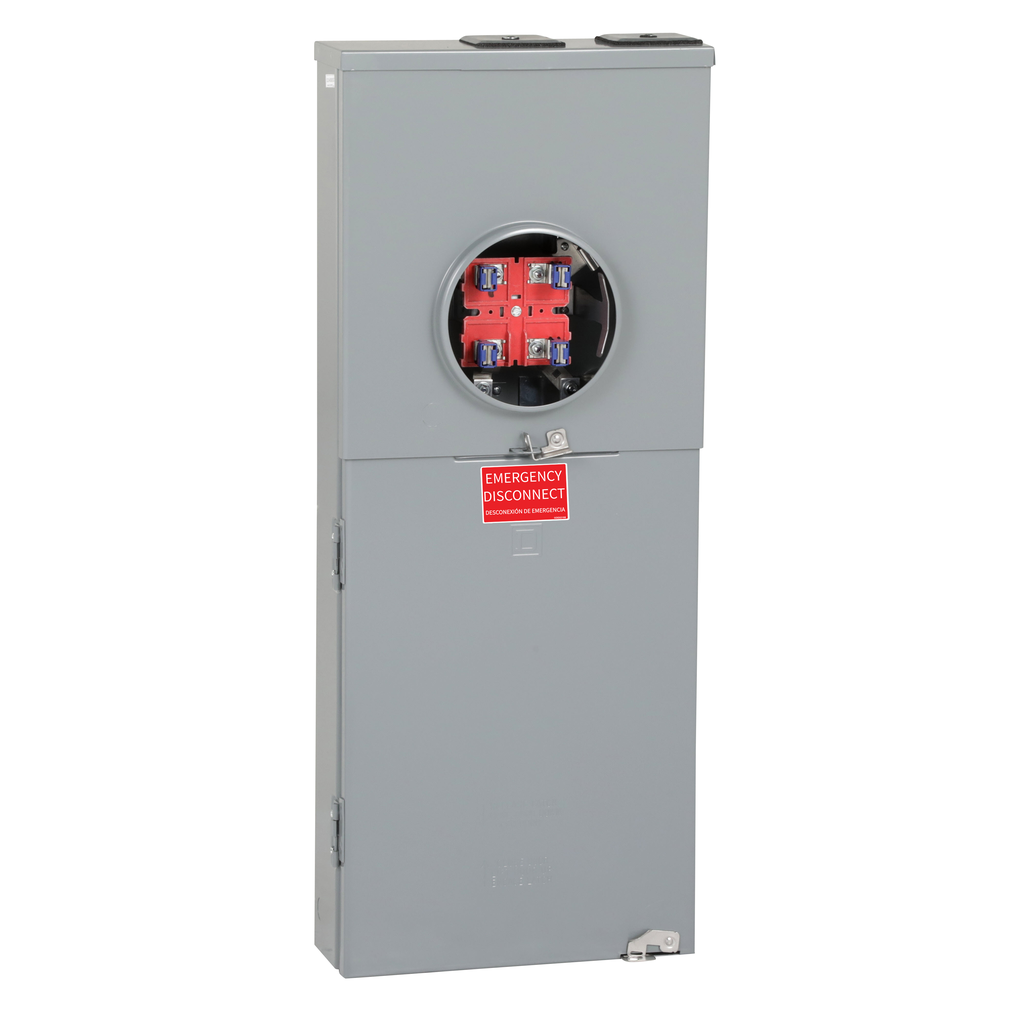

Square D All-in-One devices are single phase power distribution panels ideal for residential use for when the local codes allow main breaker load centers to be mounted outside These devices come with a meter socket that supports a standard utility meter, a main disconnect and a load center distribution with spaces up to 42 circuits. Square D All-in-Ones products are single compact solution provides a time and space saving solution for contractors and installers as well as meet a wide range of applications in use today. This All-in-One is designed for QO range, has a 24 spaces,is rated at 200A and has a short circuit current rating of 22 kA. This device has no bypass type, uses a ringless meter socket type and can be service feed either overhead or underground. This CSED uses lugs on both the line and service ground side of the device, has a wire range of 6 AWG–350 kcmi on the line side and 8-2/0 AWG on the service ground side. The dimensions for this product are 35.13 in (H) x 14.12 in (W) x 5.07 in (D).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | QO |
---|---|
Hub Type | A |
Meter Socket Type | ringless |
Product Or Component Type | All-In-One |
Warranty | 18 months |
Height | 35.13 in |
Short-Circuit Current | 22 kA |
Tightening Torque |
|
Number Of Tandem Circuit Breakers | 18 |
Branch Circuit Breaker Rated Current | 200 A |
Bypass Type | no bypass |
Service Feed Location |
|
Service Disconnect Rated Current | 200 A |
Line Rated Current | 200 A |
Width | 14.12 in |
Awg Gauge |
|
Electrical Connection |
|
Depth | 5.07 in |
Number Of Circuits | 42 |
Number Of Spaces | 24 |
Device Composition | service disconnect (factory installed) |
Device Mounting | surface |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407020EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
