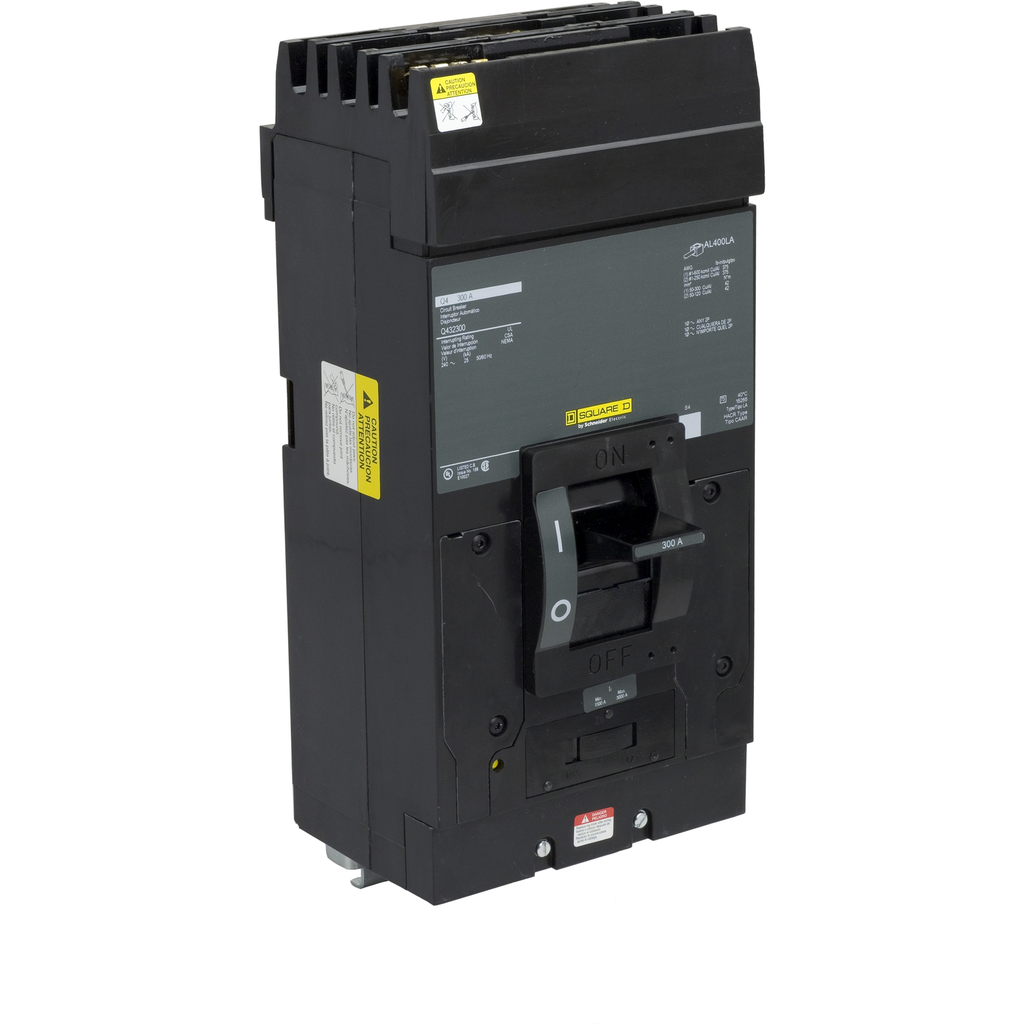

Q432300
Circuit breaker, Q4, 300A, 3 pole, 240VAC, 25kA, I-Line, thermal magnetic
Specifications
| Trip Unit Technology | thermal-magnetic |
|---|---|
| Product Or Component Type | circuit breaker |
| Range | PowerPact |
| Warranty | 18 months |
| Terminal Identifier | AL400LA |
| Height | 11 in |
| Mounting Mode | I-Line |
| Tightening Torque |
|
| Breaking Capacity Code | Q4 |
| Magnetic Tripping Current | 3000-3000 A |
| Poles Description | 3P |
| Line Rated Current | 300 A |
| Width | 6 in |
| Electrical Connection |
|
| Depth | 5.84 in |
| Magnetic Hold Current | 1500 A |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
