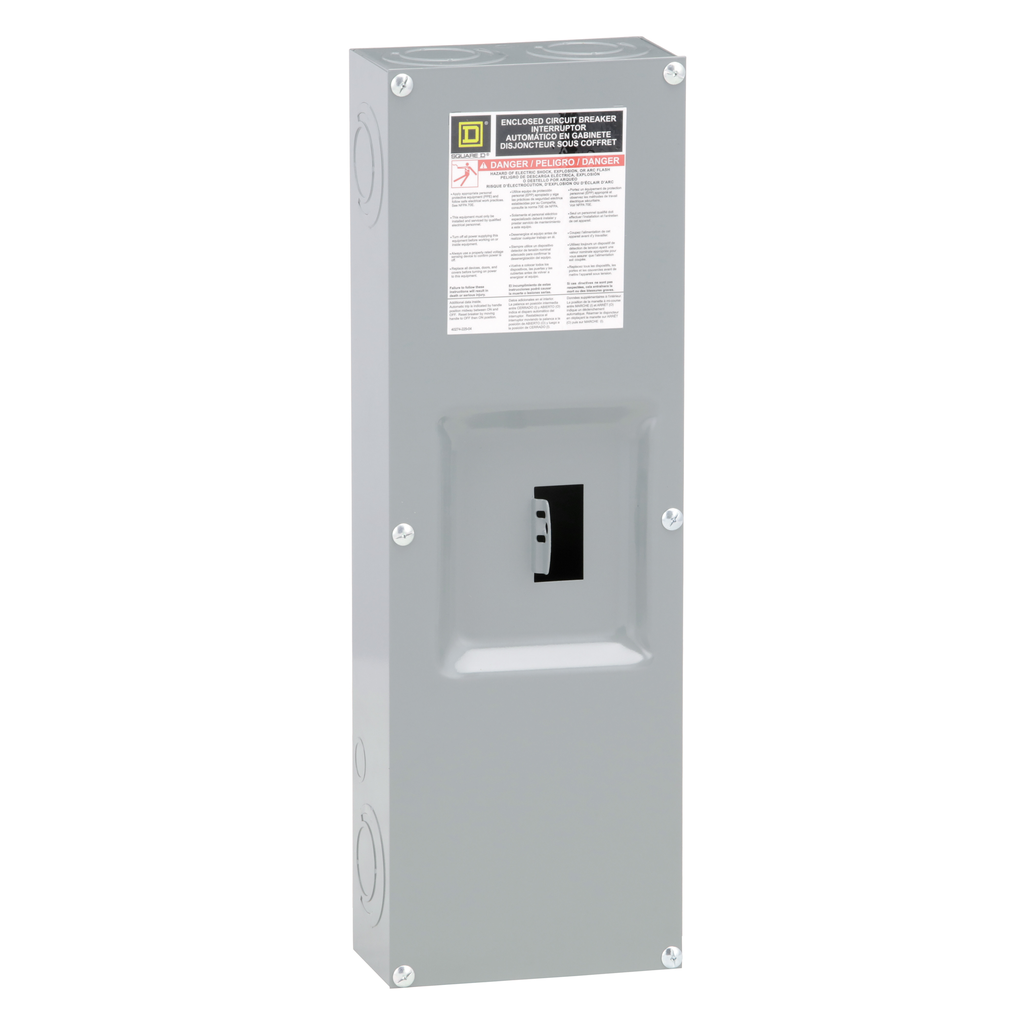

TYPE 1 200A 240V MOULDED CASE CIRCUIT BREAKER ENCLOSURE
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This circuit breaker enclosure has a current rating of 200A and 2 pole. It is rated at NEMA 1. The product is UL Listed. This PowerPact Q, Molded Case Circuit Breaker Enclosure, 2P, 3P, 100-200A, Type 3R, enclosure is made of steel. This enclosure complies to UL & CSA standards. The dimensions are 594 mm (H,)194 mm (W),121 mm (D).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact Q |
|---|---|
| Product Or Component Type | enclosure |
| Warranty | 18 months |
| Product Certifications |
|
| Line Rated Current | 200-200 A |
| Height | 588 mm |
| Poles Description | 2P |
| Line Rated Current | 200 A |
| Enclosure Material | steel |
| Width | 194 mm |
| Depth | 108 mm |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
Documents
- Spec Sheet
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D PowerPacT Q-Frame Circuit Breakers and Switches - 0734CT0201 (pdf)
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Q2, Q2L and Q2B Circuit Breakers Installation Instructions - 48940-188-01 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
