PKOGTH150

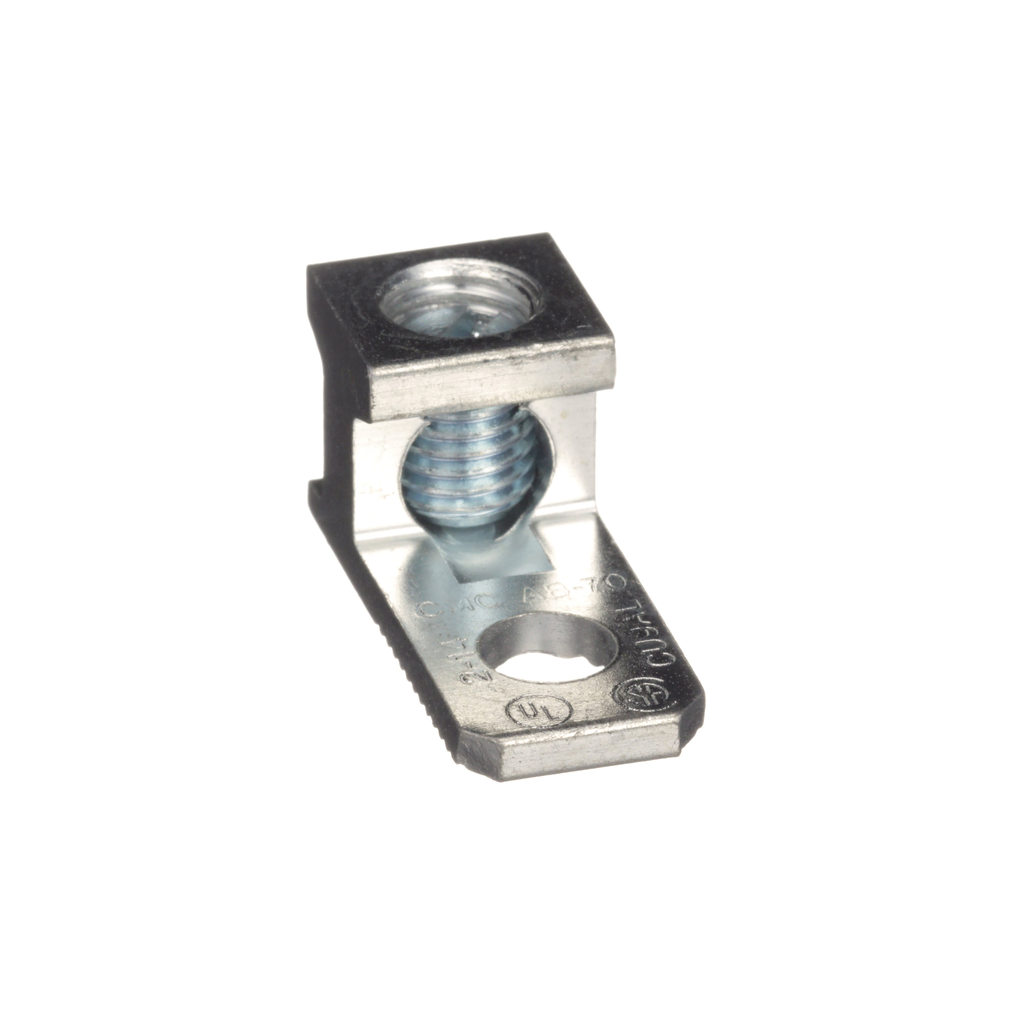

Accessory, PowerPacT H, J, circuit breaker enclosure, service ground kit, 15 to 150A, 14 to 2AWG
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Service ground kit is designed for enclosures used for PowerPact H-frame 2 and 3 poles circuit brearkers with currect rating of 15 A to 150A This servise ground kit could be used in any NEMA rating enclosure. Terminal data for this service ground kit is AWG 14 - AWG 2 aluminium or copper. Accessory comes as 2 pieces per kit.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Enclosure spare parts |
|---|---|
| Quantity Per Set | set of 2 |
| Product Or Component Type | grounding kit |
| Device Application | lug mounting |
| Line Rated Current | 15-150 A |
| Mounting Mode | unit mount |
| Poles Description | 2P or 3P |
| Awg Gauge |
|
| Product Compatibility | PowerPact H-Frame |
| Material | aluminium/copper |
| Net Weight | 0.06 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101006 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
