PKOGTA8
Safety switch accessory, heavy duty, equipment grounding kit, E4, 1200A

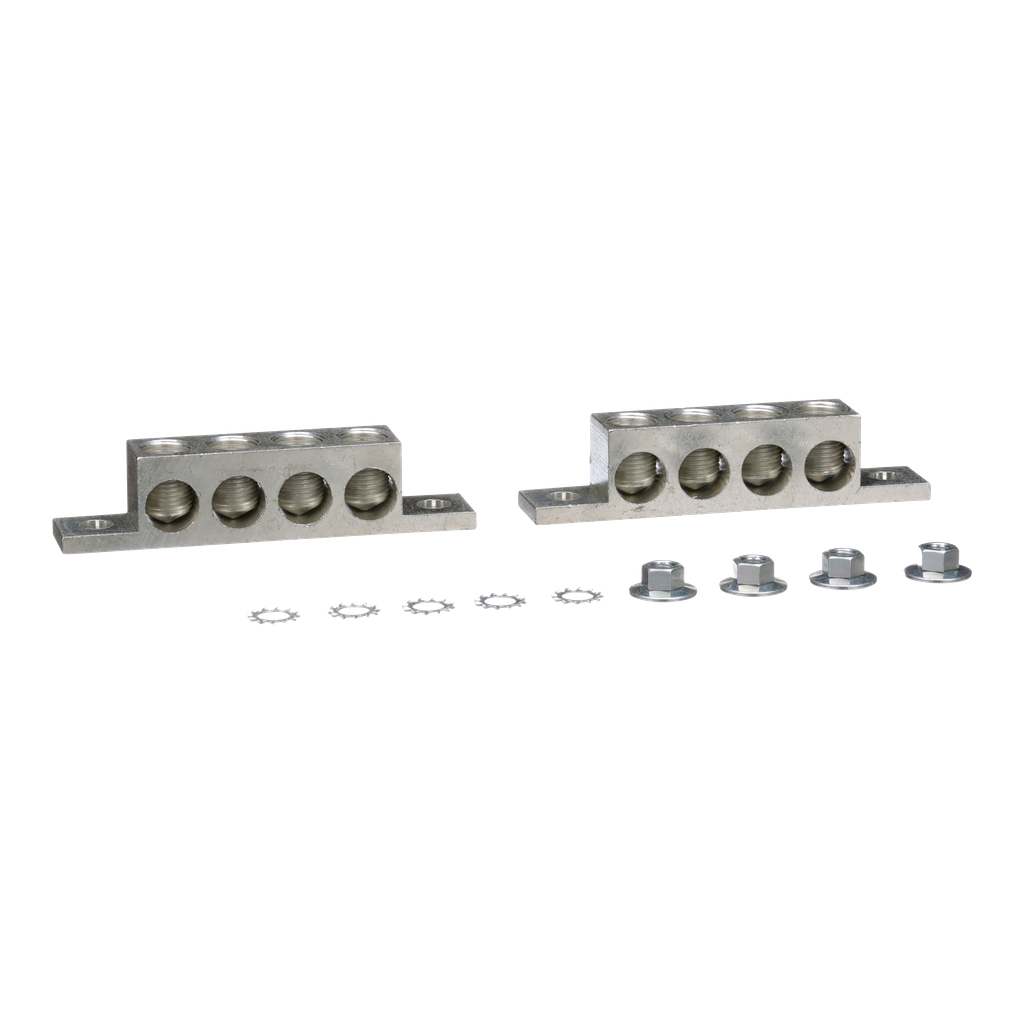

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This equipment grounding kit is one of the available accessories. The grounding bar is rated for 1200A and has 8 terminals which accept 4 AWG to 350kcmil conductor. The grounding kits are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | Square D |
| Product Or Component Type | safety switch grounding bar |
| Warranty | 18 months |
| Tightening Torque | 275-275 lbf.in (AWG 4...350 kcmil) |
| Line Rated Current |
|
| Awg Gauge | 350 kcmil copper or aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1405016EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
Documents
- Spec Sheet
- Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
- Supplemental Digest 02: Safety Switches (MAY 2023) - SD_0100CT1902_SEC-02 (pdf)
- Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
- F Series Safety Switches—Neutral Assembly Replacement Instructions - files (pdf)
- Safety Switch Maintenance Instructions (30-1200 A) - files+(1) (pdf)
- 800A and 1200 A Heavy Duty Safety Switches Installation Instructions - 40271-959-02 (pdf)
- PKOGTA7 and PKOGTA8 Equipment Grounding Kits Installation Instructions - 40272-134-02 (pdf)
