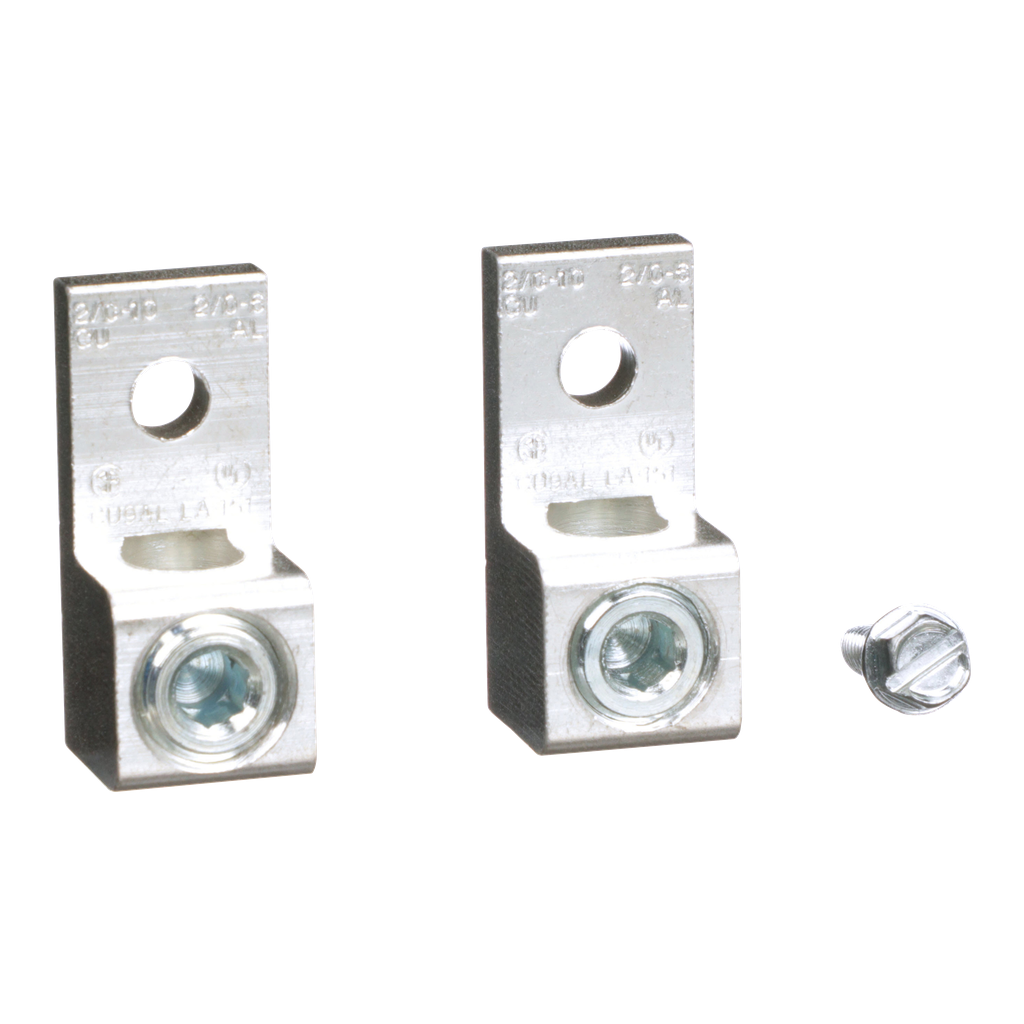

Safety switch accessory, heavy duty, equipment grounding kit, E1, E3, E4-E5, F1, F5-F6
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 100A and is UL listed with a NEMA 3R rating of protection. This Hwavy Duty Safety Switch Equipment Ground Assy for 240V & 600V, 100A-200A. This product comes with an 18 month warranty. This heavy duty safety switch grounding bar by Square D has a rated current of 200A and is rated ofr an AWG gauge of AWG 2/0, copper or aluminium
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | Square D |
| Product Or Component Type | safety switch grounding bar |
| Warranty | 18 months |
| Tightening Torque |
|
| Line Rated Current |
|
| Awg Gauge | AWG 2/0 copper or aluminium |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304031 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
