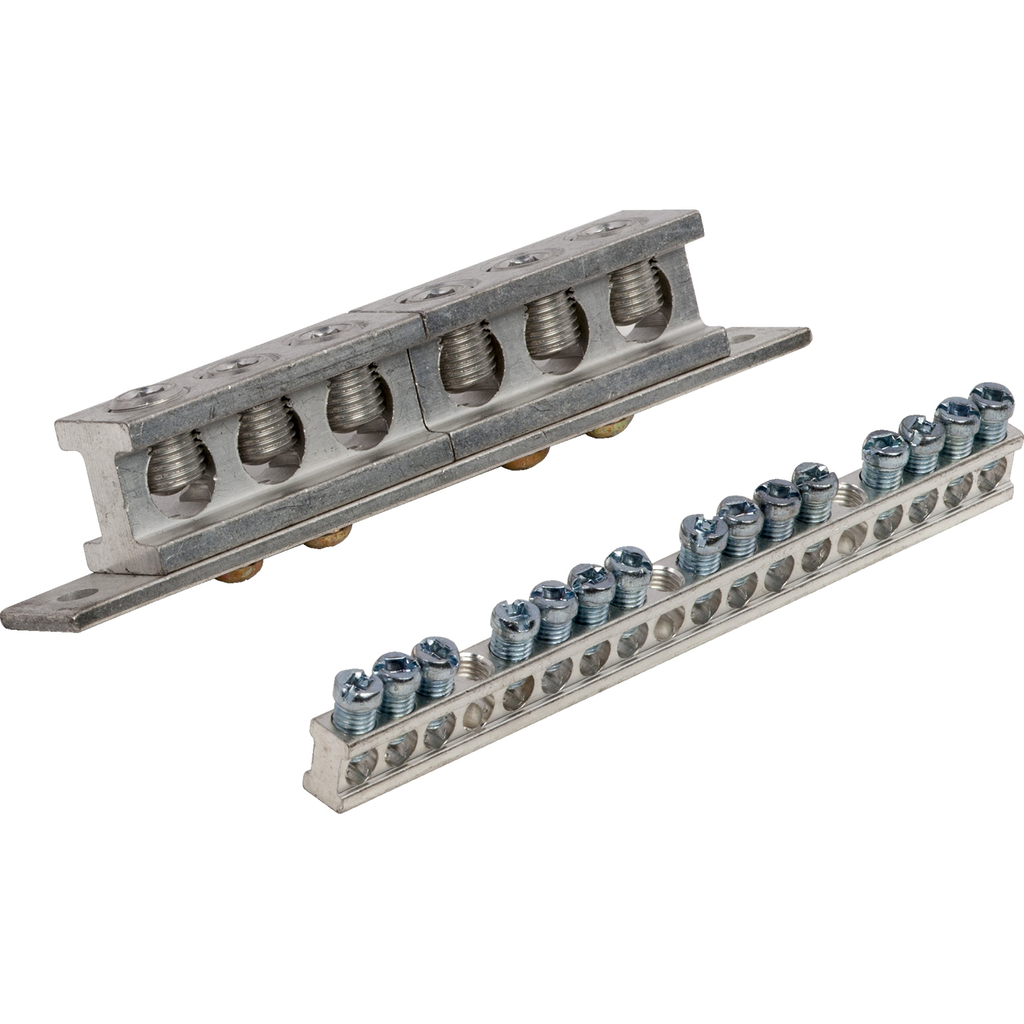

PK15GTA6 - Load center accessory, QO/Homeline, ground bar kit, 21 terminals

PK15GTA6

Add to Quote Catalogue

Range Of Product	QO
Product Or Component Type	bar
Warranty	18 months
Provided Equipment	2 screw
Height	.437 in
Tightening Torque	30 lb.in 20 lb.in, AWG 14...AWG 10, copper 20 lb.in, AWG 12...AWG 10, aluminium 35 lb.in, AWG 6...AWG 4 25 lb.in, AWG 8 25 lb.in, AWG 14...AWG 12, copper 25 lb.in, AWG 12...AWG 10, aluminium
Maximum Length Of Segment	80 mm 133 mm
Bar Length	149 mm
Awg Gauge	AWG 14...AWG 4 copper AWG 12...AWG 4 aluminium AWG 6...AWG 3/0 aluminium/copper
Depth	0.312 in
Number Of Connectors	21
Device Mounting	direct mounting back of enclosure
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2101006
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
