PDC6P20
Power distribution connector, PowerPacT P, M, circuit breaker, 250 to 1200A, 12 to 2/0AWG, 2 to 35 mm, copper

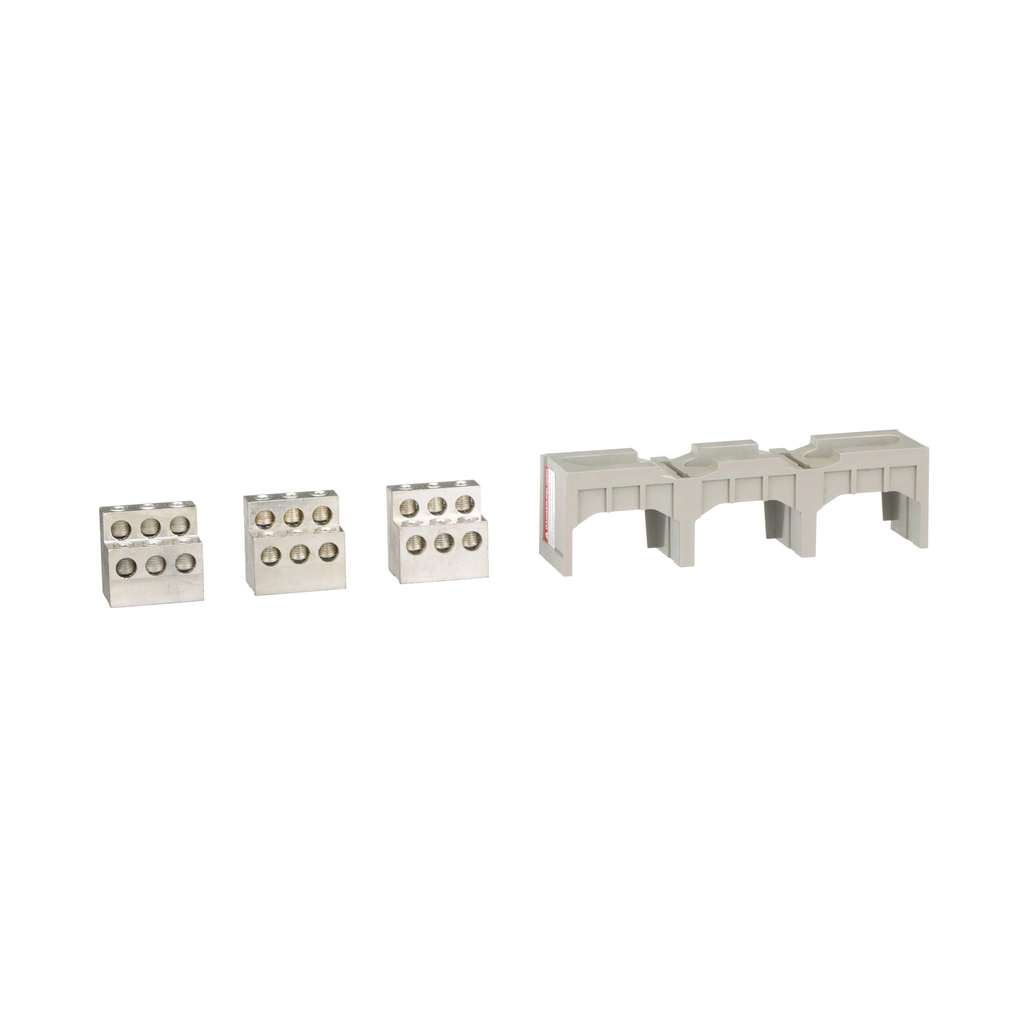

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. Power distribution connectors can be used for multiple load wire connections on one circuit breaker. This power distribution connector is available for PowerPacT M and P circuit breakers. The connector accepts six 12 AWG to 2/0 AWG copper wires. Kit contents mounting hardware, lugs and special purpose label and instructions, quantity of three per kit. The connector complies with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact |
|---|---|
| Circuit Breaker Type |
|
| Quantity Per Set | set of 3 |
| Product Or Component Type | power distribution connector |
| Warranty | 18 months |
| Line Rated Current | 250-1200 A |
| Tightening Torque |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
