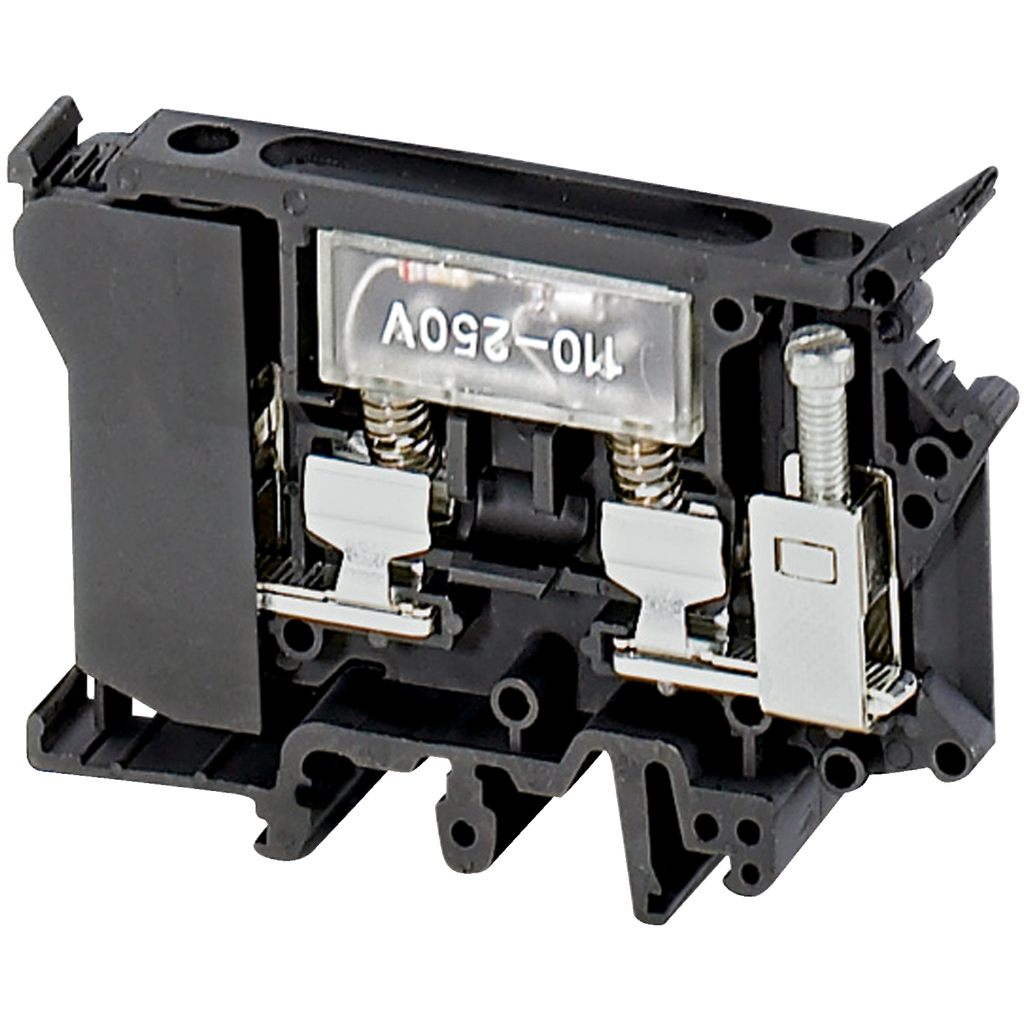

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This black fuseholder block will accept 6.3x32 mm fuses. This fuseholder has a UL rating of 10 A at 600 volts. The two terminal points have screw termination. The terminals will accept wires from 26 AWG to 8 AWG. This fuse holder has a 110 to 250 volt blown fuse indicator light to make trouble shooting fastger. With the help of a screw driver this fuse holder block will mount on 35mm DIN rail. Each block is 2.38 inches tall, 0.40 inches wide and 3.11 inches deep. Each wieghs 1.21 oz. The fuse blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
Brand: Schneider Electric
Add to Quote CatalogueTerminal Block Type | fused disconnect |
---|---|
Product Or Component Type | terminal block |
Product Name | Linergy TR |
Length | 79 mm |
Range | Linergy |
Mounting Mode | clip-on |
Terminal Block Level | 1 |
Nominal Cross Section | 16 mm² |
Quantity Per Set | set of 50 |
Color | Black |
Device Short Name | TRV |
Warranty | 18 months |
Dielectric Loss |
|
Fuse Size | 6.3 x 32 mm |
Height | 60.5 mm |
Number Of Terminals | 2 |
Cable Cross Section |
|
Connections - Terminals |
|
Provided Equipment | 110...250 V light indicator |
Connection Position | sideways |
Number Of Measurement Input | 0 |
Tool Type |
|
Net Weight | 34.2 g |
Flame Retardance | V0 0.8 mm UL 94 |
Wire Stripping Length | 9 mm |
Resistivity |
|
Dielectric Constant | 3.7 at 1 MHz |
Material | polyamide 6/6 insulating case |
Surface Resistance |
|
Width | 10.2 mm |
Range Compatibility |
|
Tightening Torque | 0.6-0.8 N.m |
Product Compatibility | Spacial enclosures |
Line Rated Current |
|
Creep Resistance |
|
[Ue] Rated Operational Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1304013EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications |
|
Ambient Air Temperature For Operation |
|
Dielectric Strength | 1000 V IEC 60243-1 |
