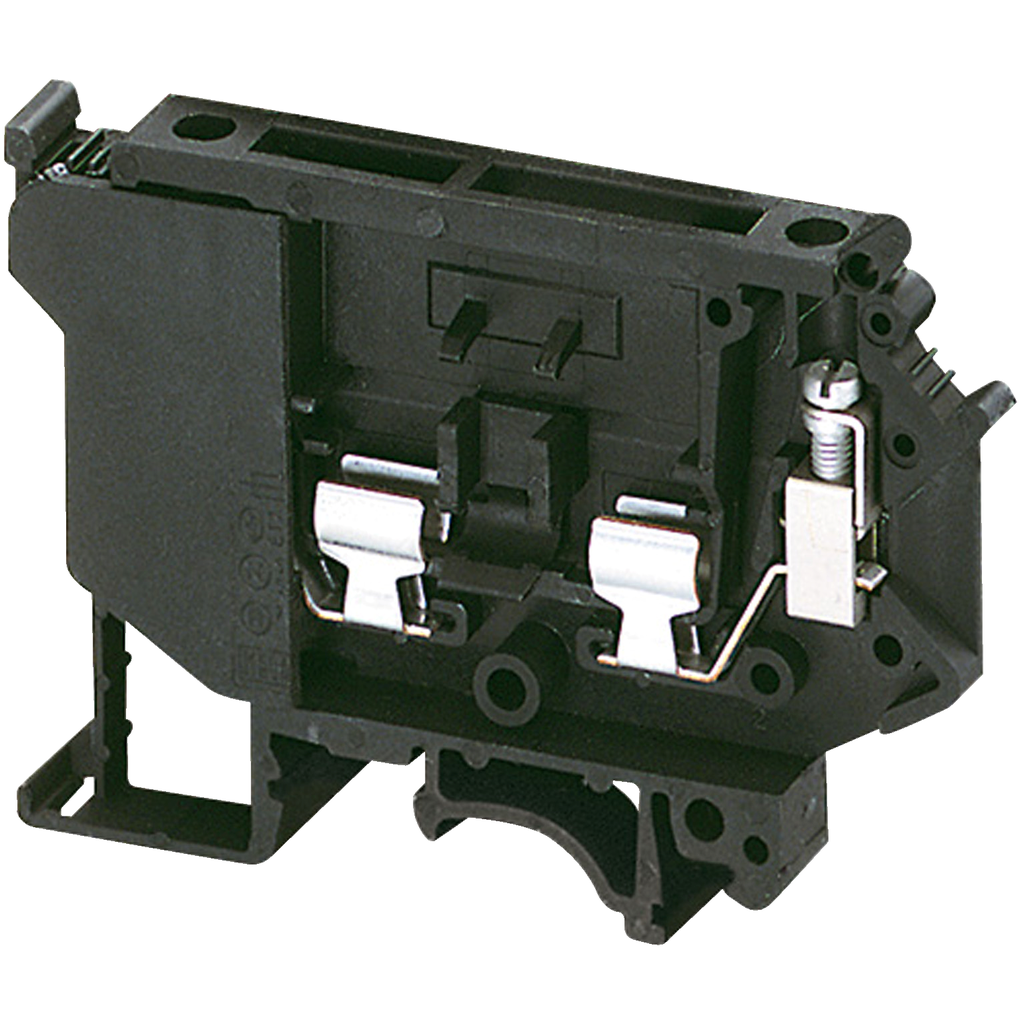

Terminal block, Linergy TR, fused disconnect type, for 5x20,5x25,5x30mm cartridge fuse, 2 points, 4mm², black
Linergy TR is terminal block for Linergy. It belongs to fuse disc terminal with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 6.3A conforming to EN/IEC 60947-7-1, 6.3A conforming to CSA and 12A cURus. It has black surface treatment. Mounting by clip-on and sideways connection with 5x20mm fuse. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Terminal Block Type | fused disconnect |
|---|---|
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 72.5 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Nominal Cross Section | 4 mm² |
| Quantity Per Set | set of 50 |
| Color | Black |
| Device Application | protection |
| Device Short Name | TRV |
| Warranty | 18 months |
| Dielectric Loss |
|
| Fuse Size | 5 x 20 mm |
| Height | 56.5 mm |
| Number Of Terminals | 2 |
| Connections - Terminals |
|
| Cable Cross Section |
|
| Connection Position | sideways |
| Number Of Measurement Input | 0 |
| Tool Type |
|
| Net Weight | 18.3 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Wire Stripping Length | 8 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material | polyamide 6/6 insulating case |
| Surface Resistance |
|
| Width | 8.2 mm |
| Range Compatibility |
|
| Tightening Torque | 0.5-0.8 N.m |
| Product Compatibility | Spacial enclosures |
| Line Rated Current |
|
| Creep Resistance |
|
| [Ue] Rated Operational Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
