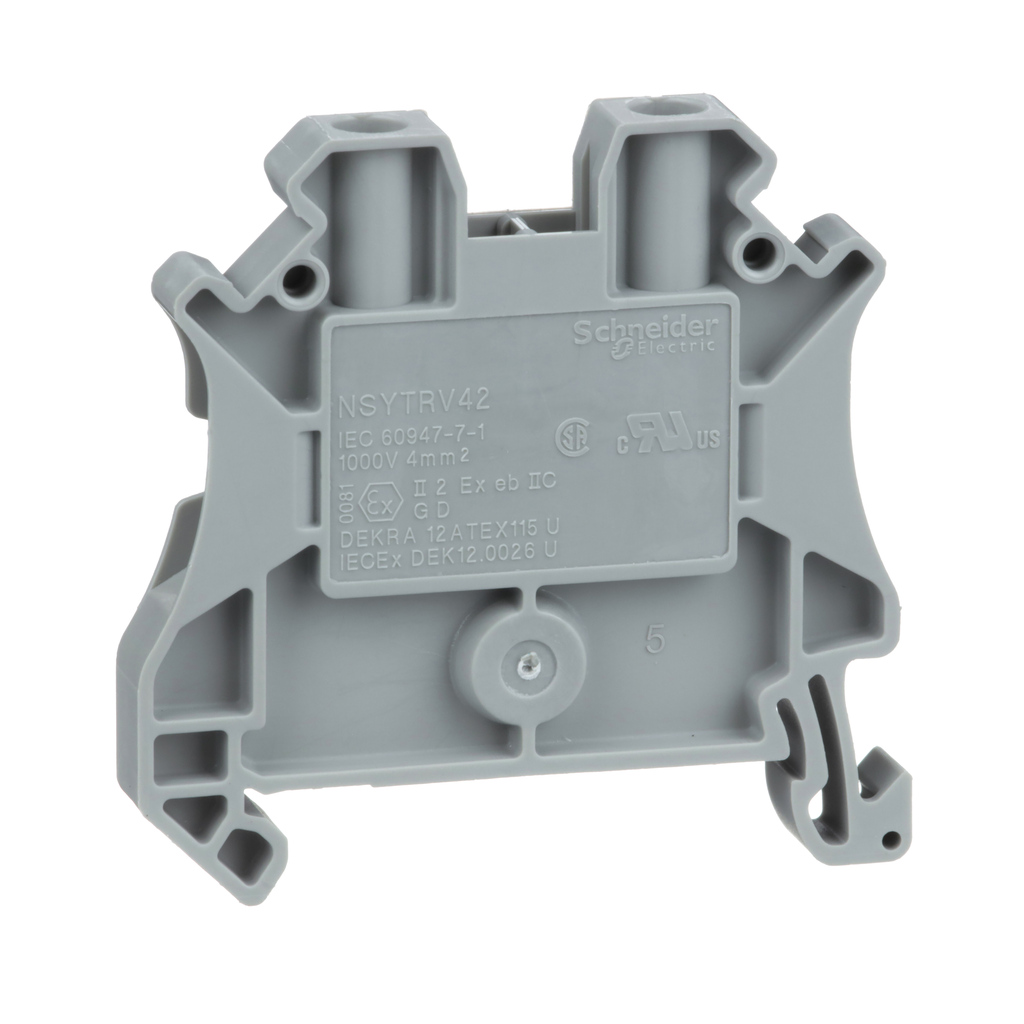

Linergy terminal blocks, screw terminal, feed through, 2 points, 4 mm wide, grey
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Terminal Block Type | passthrough |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 47.7 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Nominal Cross Section | 4 mm² |
| Quantity Per Set | set of 50 |
| Color | Gray |
| Device Short Name | TRV |
| Warranty | 18 months |
| Dielectric Loss |
|
| Height | 47.5 mm |
| Number Of Terminals | 2 |
| Connection Position | sideways |
| Number Of Measurement Input | 2 |
| Tool Type |
|
| Net Weight | 9.4 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Connections - Terminals |
|
| Wire Stripping Length | 9 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Cable Cross Section |
|
| Material |
|
| Surface Resistance |
|
| Width | 6.2 mm |
| Range Compatibility |
|
| Tightening Torque | 0.6-0.8 N.m |
| Product Compatibility | Spacial enclosures |
| Line Rated Current |
|
| Creep Resistance |
|
| [Ue] Rated Operational Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
