NSYTRR44D

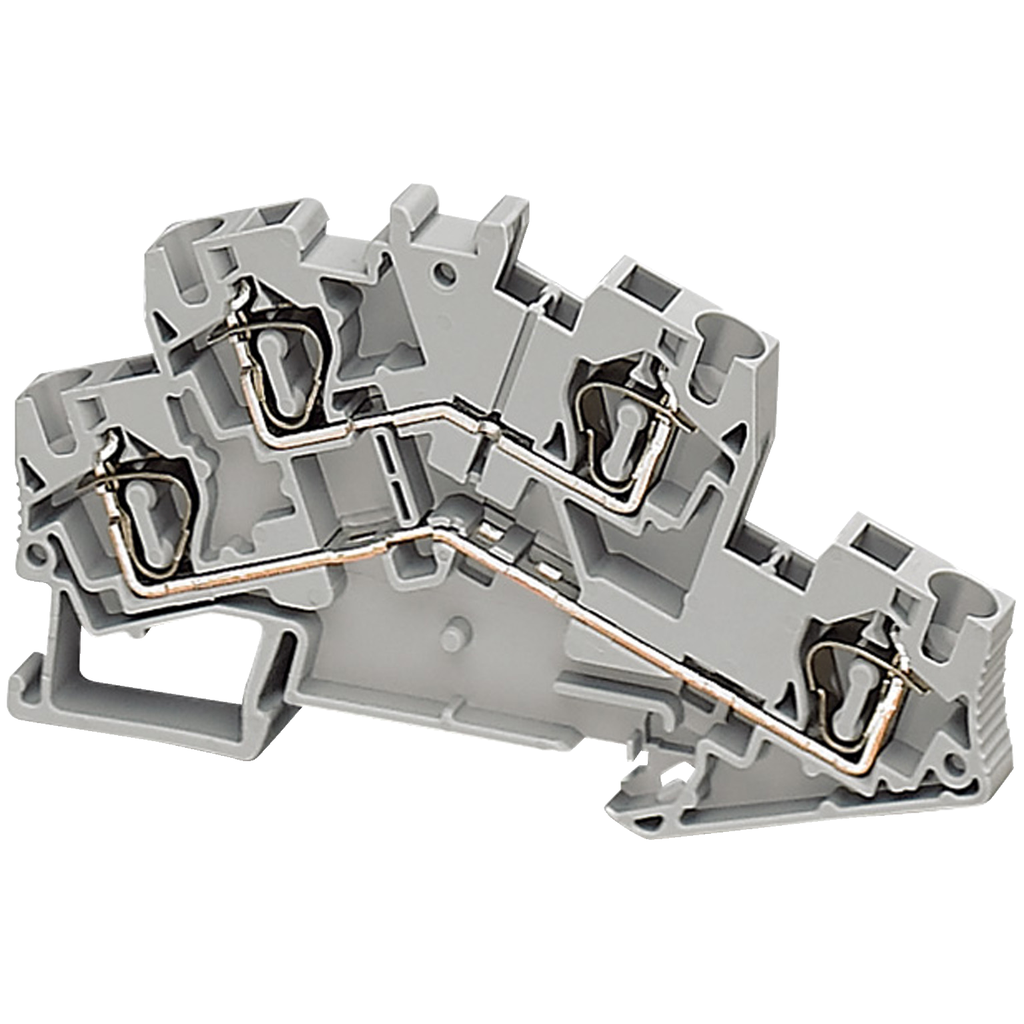

Terminal block, Linergy TR, spring type, double level, 4 points, 4mm², grey, set of 50
Specifications
| Terminal Block Type | passthrough |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 92.4 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 2 |
| Nominal Cross Section | 4 mm² |
| Quantity Per Set | set of 50 |
| Color | Gray |
| Device Short Name | TRR |
| Warranty | 18 months |
| Dielectric Loss |
|
| Height | 55 mm |
| Number Of Terminals | 2 |
| Cable Cross Section |
|
| Connections - Terminals |
|
| Connection Position | top |
| Number Of Measurement Input | 4 |
| Tool Type |
|
| Net Weight | 18 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Wire Stripping Length | 10 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material |
|
| Surface Resistance |
|
| Width | 6.2 mm |
| Range Compatibility |
|
| Product Compatibility | Spacial enclosures |
| Line Rated Current |
|
| Creep Resistance |
|
| [Ue] Rated Operational Voltage |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
