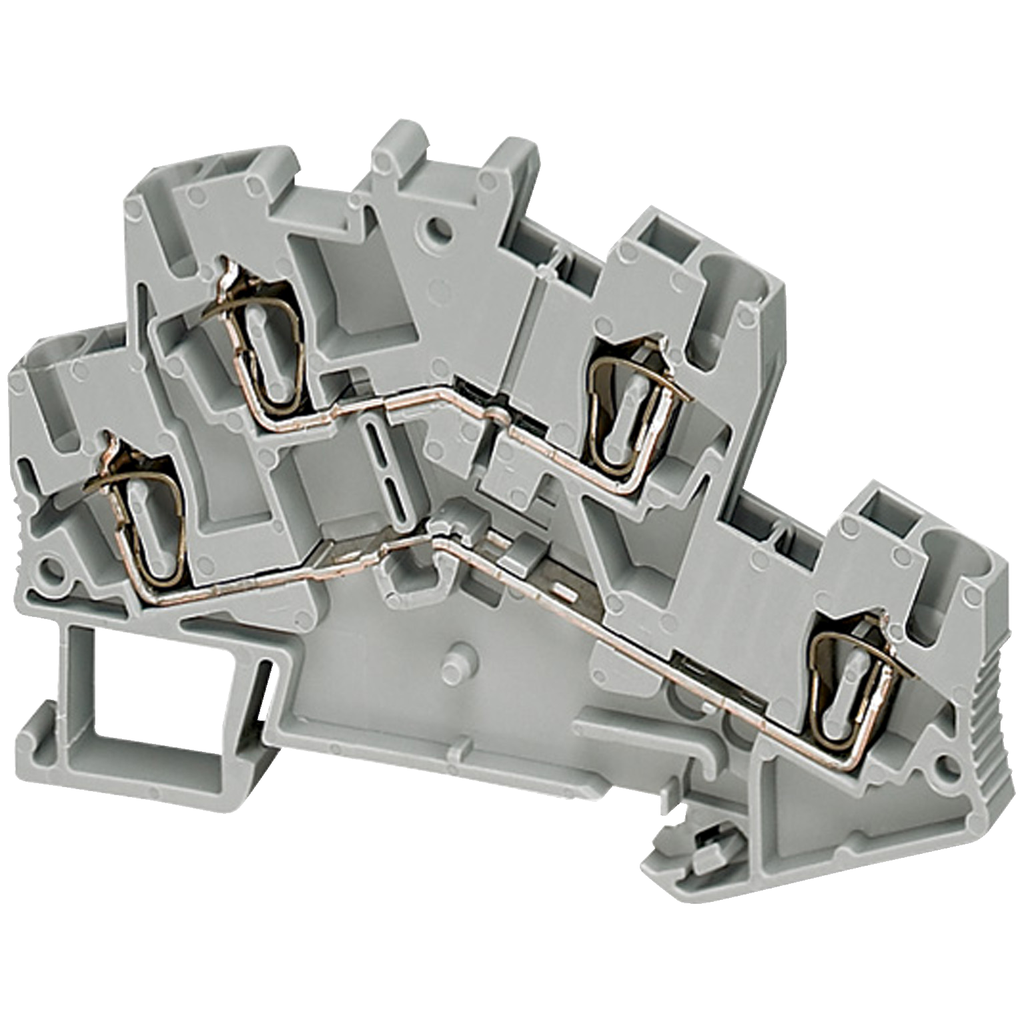

NSYTRR24D – Terminal block, Linergy TR, spring type, feed through, 2 level, 4 points, 2.5mm², grey, set of 50
NSYTRR24D
Terminal block, Linergy TR, spring type, feed through, 2 level, 4 points, 2.5mm², grey, set of 50

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA, 300V conforming to cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 22A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Terminal Block Type passthrough
Accessory / Separate Part Category connection accessory
Product Or Component Type terminal block
Product Name Linergy TR
Length 78 mm
Range Linergy
Mounting Mode clip-on
Terminal Block Level 2
Nominal Cross Section 2.5 mm²
Quantity Per Set set of 50
Color Gray
Device Short Name TRR
Warranty 18 months
Dielectric Loss
  • 0.01 at 1 MHz IEC 60250
  • 0.01 at 1 MHz VDE 0303-T4
Height 55 mm
Number Of Terminals 2
Connections - Terminals
  • 1 x spring terminal upstream
  • 1 x spring terminal downstream
Cable Cross Section
  • 0.08-2.5 mm², flexible without cable end
  • 0.08-4 mm², solid with cable end
  • 0.2-2.5 mm², flexible with cable end
  • 0.08-4 mm², solid without cable end
Connection Position top
Number Of Measurement Input 4
Tool Type
  • connection flat screwdriver
  • disconnection flat screwdriver
Net Weight 12.3 g
Flame Retardance V0 0.8 mm UL 94
Wire Stripping Length 10 mm
Resistivity
  • 10000 MΩ.m IEC 60093
  • 10000 MΩ.m VDE 0303-T30
Dielectric Constant 3.7 at 1 MHz
Material
  • polyamide 6/6 insulating case
  • copper alloy connector and screw
  • copper alloy commoning link
  • chromium-nickel steel spring
Surface Resistance
  • 1000 GΩ IEC 60093
  • 1000 GΩ VDE 0303-T30
Width 5.2 mm
Range Compatibility
  • Prisma G
  • Prisma P
  • Prisma PH
  • Prisma Pack
  • Spacial
  • Kaedra
  • Pragma
  • TeSys
Product Compatibility Spacial enclosures
Line Rated Current
  • 20-20 A CSA
  • 20-20 A cURus
  • 22-22 A EN/IEC 60947-7-1
  • 19.5-19.5 A
Creep Resistance
  • 500 CTI (> 400 kB) IEC 60093
  • 500 CTI (> 400 kB) VDE 0303-T30
[Ue] Rated Operational Voltage
  • 500 V EN/IEC 60947-7-1
  • 300 V CSA
  • 440 V
  • 600 V cURus
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1304012EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Halogen Content Performance Halogen free plastic parts product
Product Certifications
  • ATEX
  • cURus
  • GL
  • LR
  • VDE
  • DNV
  • IEC-Ex
  • CSA
  • EAC
Ambient Air Temperature For Operation
  • -40-130 °C IEC 60216-1
  • -40-130 °C VDE 0304-T21
Dielectric Strength 1000 V IEC 60243-1
