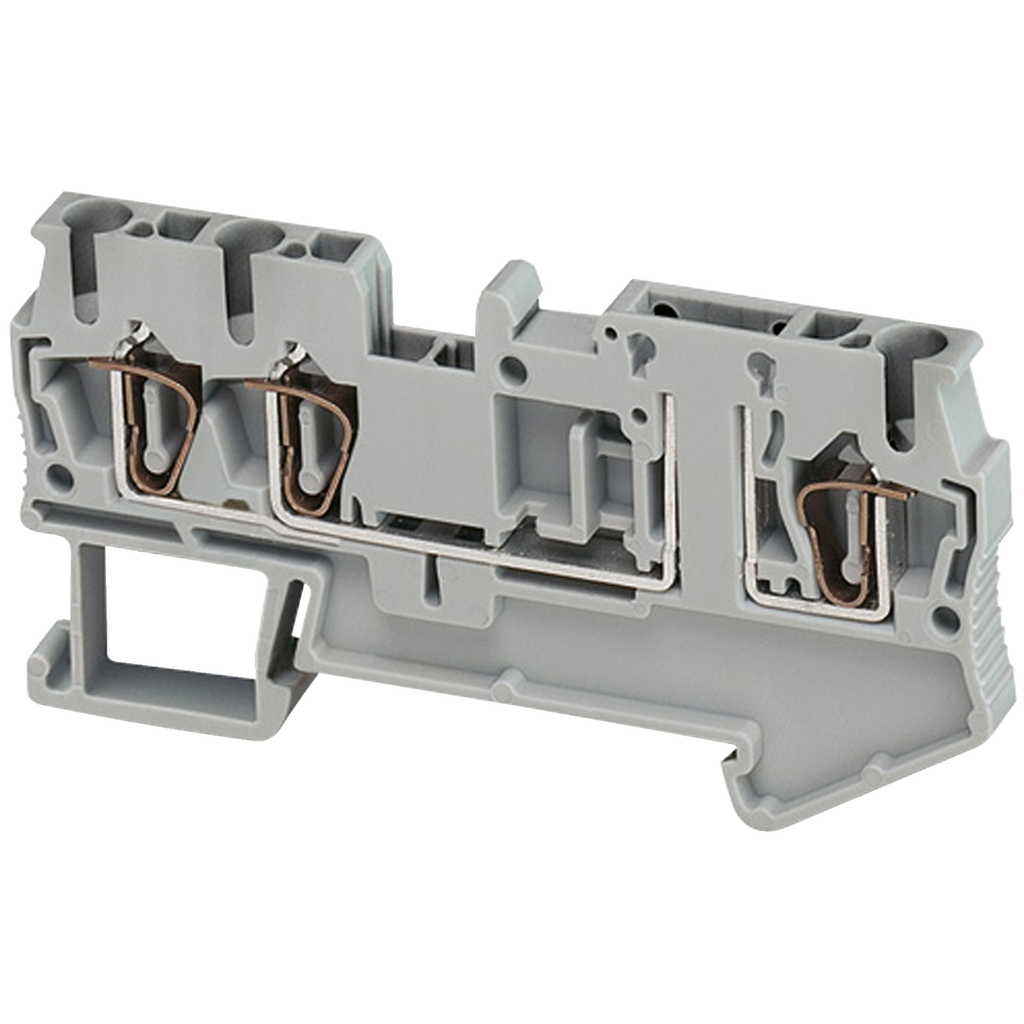

NSYTRR23TB
Terminal block, spring type, basic disconnect terminal, 3 points, 4mm², grey
Specifications
| Mounting Mode | clip-on |
|---|---|
| Terminal Block Level | 1 |
| Terminal Block Type | removable carrier disconnect |
| Nominal Cross Section | 2.5 mm² |
| Quantity Per Set | set of 50 |
| Product Or Component Type | terminal block |
| Color | Gray |
| Associated Connection Component |
|
| Product Name | Linergy TR |
| Length | 72 mm |
| Device Short Name | TRR |
| Range | Linergy |
| Dielectric Loss |
|
| Wire Stripping Length | 10 mm |
| Fuse Size |
|
| Resistivity |
|
| Height | 36.5 mm |
| Number Of Terminals | 3 |
| Cable Cross Section |
|
| Connections - Terminals |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material | polyamide 6/6 insulating case |
| Connection Position | top |
| Number Of Measurement Input | 2 |
| Surface Resistance |
|
| Width | 5.2 mm |
| Range Compatibility |
|
| Product Compatibility | Spacial enclosures |
| Line Rated Current |
|
| Tool Type |
|
| Net Weight | 8.6 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Creep Resistance |
|
| [Ue] Rated Operational Voltage |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304012EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Halogen Content Performance | Halogen free plastic parts product |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
