NSYTRR23PE

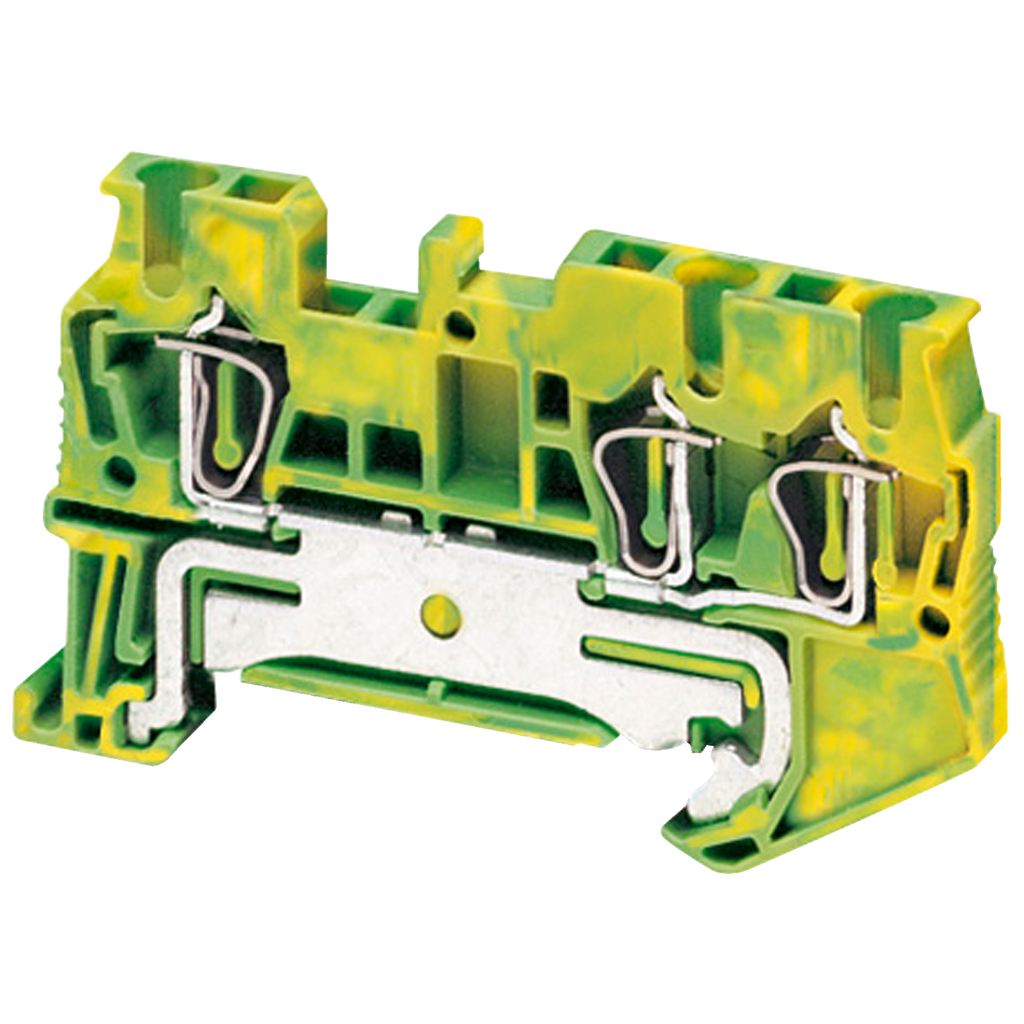

Terminal Blocks, Linergy, ground block, spring termination, 3 points, 28AWG to 12AWG, green/yellow
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This green/yellow grounding terminal block has 3 terminal points. This terminal block has spring termination. The terminals will accept wires from 28 AWG to 12AWG. A screw driver is used to clamp this block to the 35mm DIN rail to make the ground connection. Each block is 1.44 inches tall, 0.20 inches wide and 2.38 inches deep. Each wieghs 0.41 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Terminal Block Type | protective earth |
|---|---|
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 60.5 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Nominal Cross Section | 2.5 mm² |
| Quantity Per Set | set of 50 |
| Color | green-yellow |
| Device Short Name | TRR |
| Warranty | 18 months |
| Dielectric Loss |
|
| Height | 36.5 mm |
| Number Of Terminals | 3 |
| Cable Cross Section |
|
| Connections - Terminals |
|
| Connection Position | top |
| Number Of Measurement Input | 2 |
| Tool Type |
|
| Net Weight | 11.58 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Wire Stripping Length | 10 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material | polyamide 6/6 insulating case |
| Surface Resistance |
|
| Width | 5.2 mm |
| Range Compatibility |
|
| Product Compatibility | Spacial enclosures |
| Creep Resistance |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
