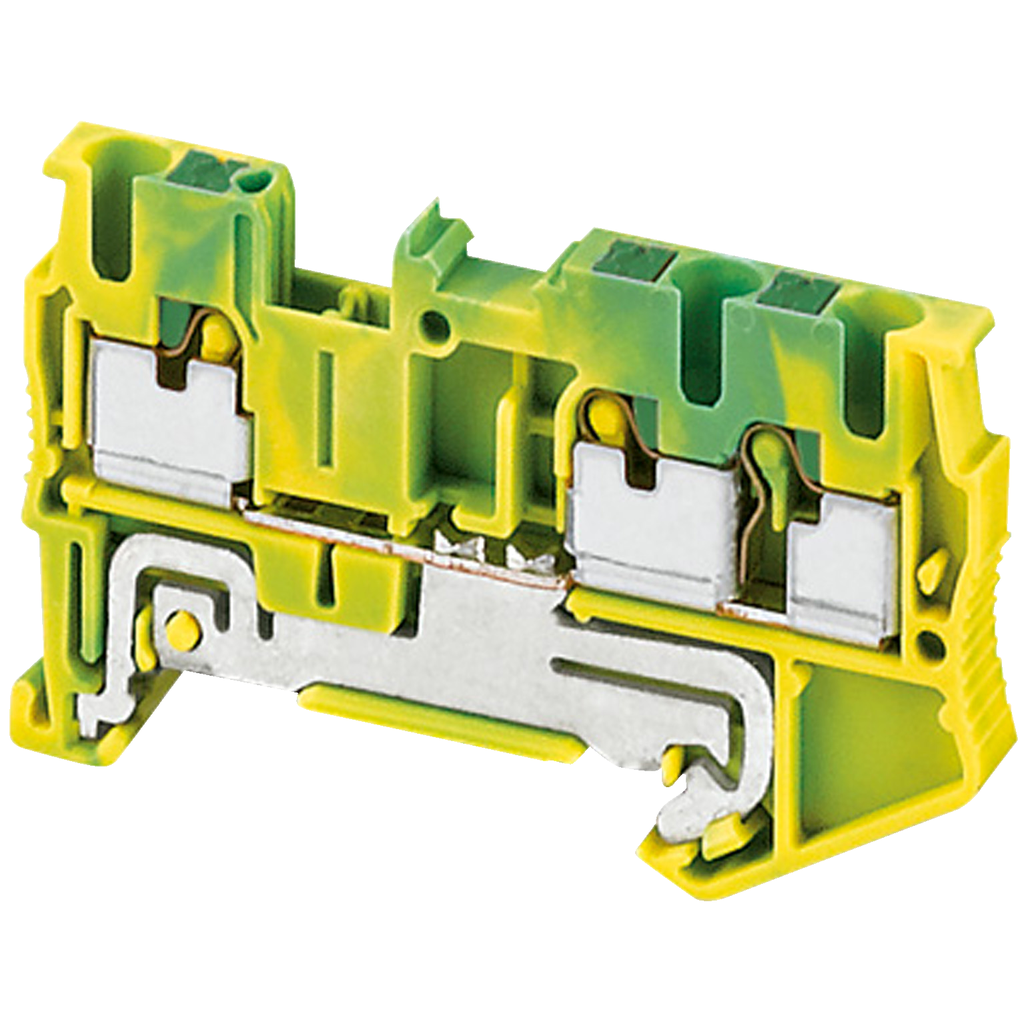

Terminal block, Linergy TR, push-in type, 3 points, 2.5mm², protective earth, green-yellow, set of 50
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA) It is compliant with Green Premium (RoHS/REACH).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Terminal Block Type | protective earth |
|---|---|
| Product Or Component Type | terminal block |
| Product Name | Linergy TR |
| Length | 60.5 mm |
| Range | Linergy |
| Mounting Mode | clip-on |
| Terminal Block Level | 1 |
| Nominal Cross Section | 2.5 mm² |
| Quantity Per Set | set of 50 |
| Color | green-yellow |
| Device Short Name | TRP |
| Warranty | 18 months |
| Dielectric Loss |
|
| Height | 36.5 mm |
| Number Of Terminals | 3 |
| Cable Cross Section |
|
| Connections - Terminals |
|
| Connection Position | top |
| Number Of Measurement Input | 2 |
| Tool Type |
|
| Net Weight | 11.7 g |
| Flame Retardance | V0 0.8 mm UL 94 |
| Wire Stripping Length | 10 mm |
| Resistivity |
|
| Dielectric Constant | 3.7 at 1 MHz |
| Material | polyamide 6/6 insulating case |
| Surface Resistance |
|
| Width | 5.2 mm |
| Range Compatibility |
|
| Product Compatibility | Spacial enclosures |
| Creep Resistance |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Dielectric Strength | 1000 V IEC 60243-1 |
