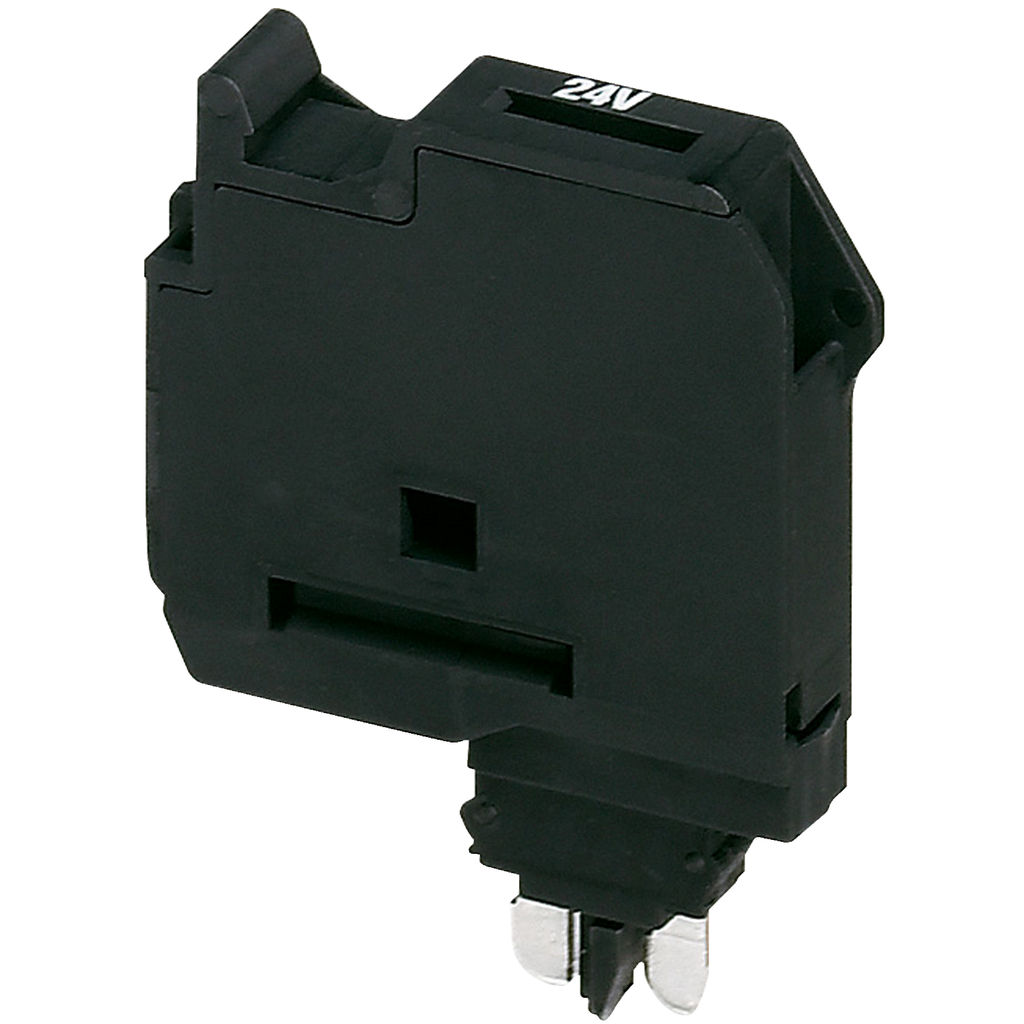

NSYTRASF520M
Component carrier, Linergy TR, for 5x20mm fuse, 6,2mm width, with 110-250V light indicator
Specifications
| Product Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | component carrier |
| Thickness | 6.2 mm |
| Product Name | TR |
| Length | 28 mm |
| Range | Linergy |
| Device Short Name | TRA |
| Fuse Size | 5 x 20 mm |
| Number Of Terminals |
|
| Provided Equipment | 110...250 V light indicator |
| Number Of Measurement Input |
|
| Net Weight | 4.18 g |
| Mounting Mode | plug-in |
| Terminal Block Level |
|
| Cable Cross Section |
|
| Quantity Per Set | set of 10 |
| Color | Black |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
