NSYTRAL420

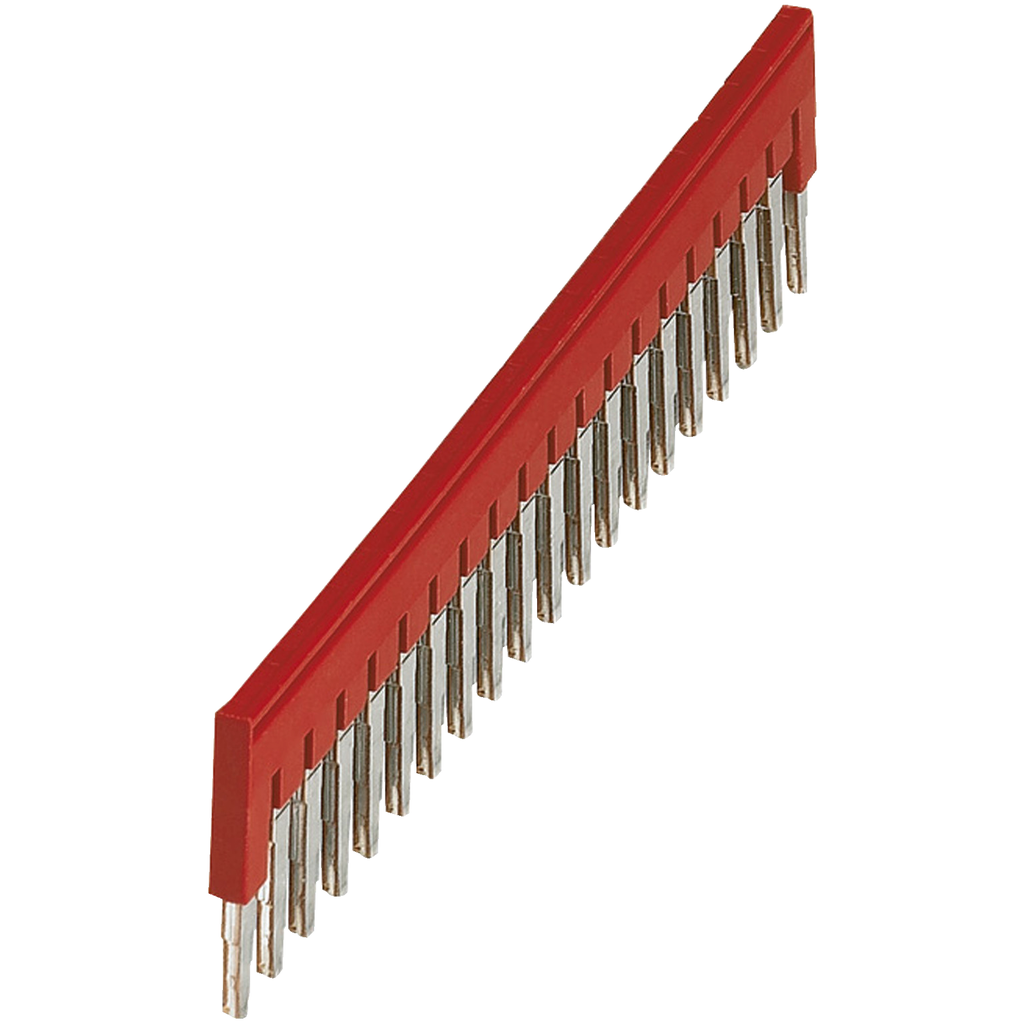

Terminal Blocks, Linergy, plugin bridge jumper, for 6.2mm wide blocks, 20 points, red
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. A plug-in bridge jumper is used to connect all of the terminal blocks electrically. This plug-in jumper will connect twenty 6.2 mm wide terminal blocks. Jumper has a red cover. Each jumper wieghs 0.71 oz. The jumpers are sold in sets of ten jumpers per package.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Compatibility |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | plug-in bridge |
| Product Name | Linergy TR |
| Range | Linergy |
| Number Of Ways | 20 ways |
| Device Short Name | TRA |
| Warranty | 18 months |
| Number Of Terminals |
|
| Number Of Measurement Input |
|
| Net Weight | 20 g |
| Cable Cross Section | 4-4 mm² |
| Quantity Per Set | set of 10 |
| Color | Red |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1304013EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Halogen Content Performance | Halogen free plastic parts product |
