NSYTJ2015

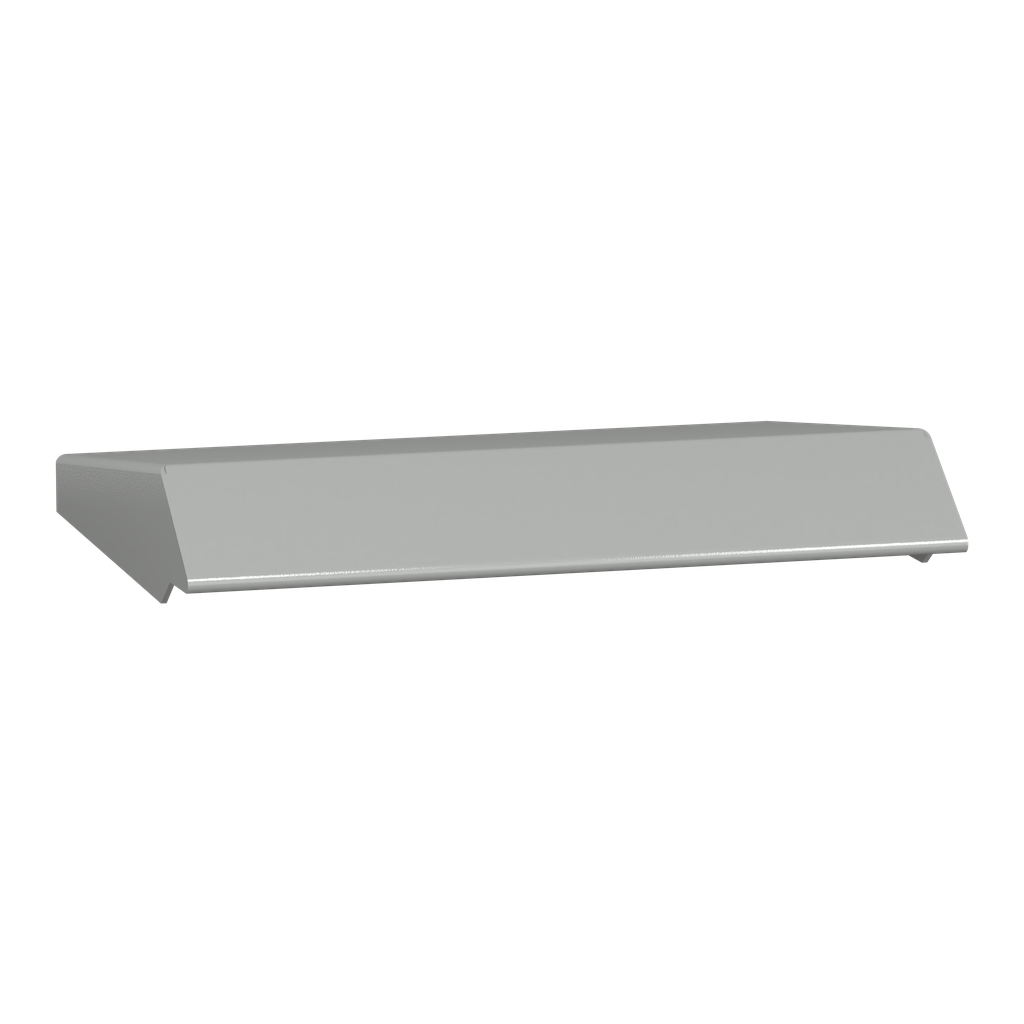

Spacial WM enclosure canopy W200xD150 Colour RAL7035. Fixings supplied.
Spacial WM Canopy for enclosures. W is 200 x D is 150 mm. Multi-purpose enclosure accessory. Mounting on top of enclosure. Fixing by 4 screws type M6. Mounting diameter 8 mm. Galvanized steel, epoxy-polyester powder finish. Grey RAL 7035. For Spacial CRN/S3D. Instruction sheet, fixing elements and canopy incl.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | enclosure accessory |
| Product Or Component Type | canopy |
| Device Composition |
|
| Device Application | multi-purpose |
| Range | Spacial |
| Mounting Location | on top of enclosure |
| Warranty | 18 months |
| Width |
|
| Height | 36 mm |
| Material | galvanised steel |
| Mounting Diameter | 8 mm |
| Surface Finish | epoxy-polyester powder |
| Color | Gray RAL 7035) |
| Net Weight | 0.85 kg |
| Depth | nominal 150 mm |
| Fixing Mode | by 4 screws M6 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP100104EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
