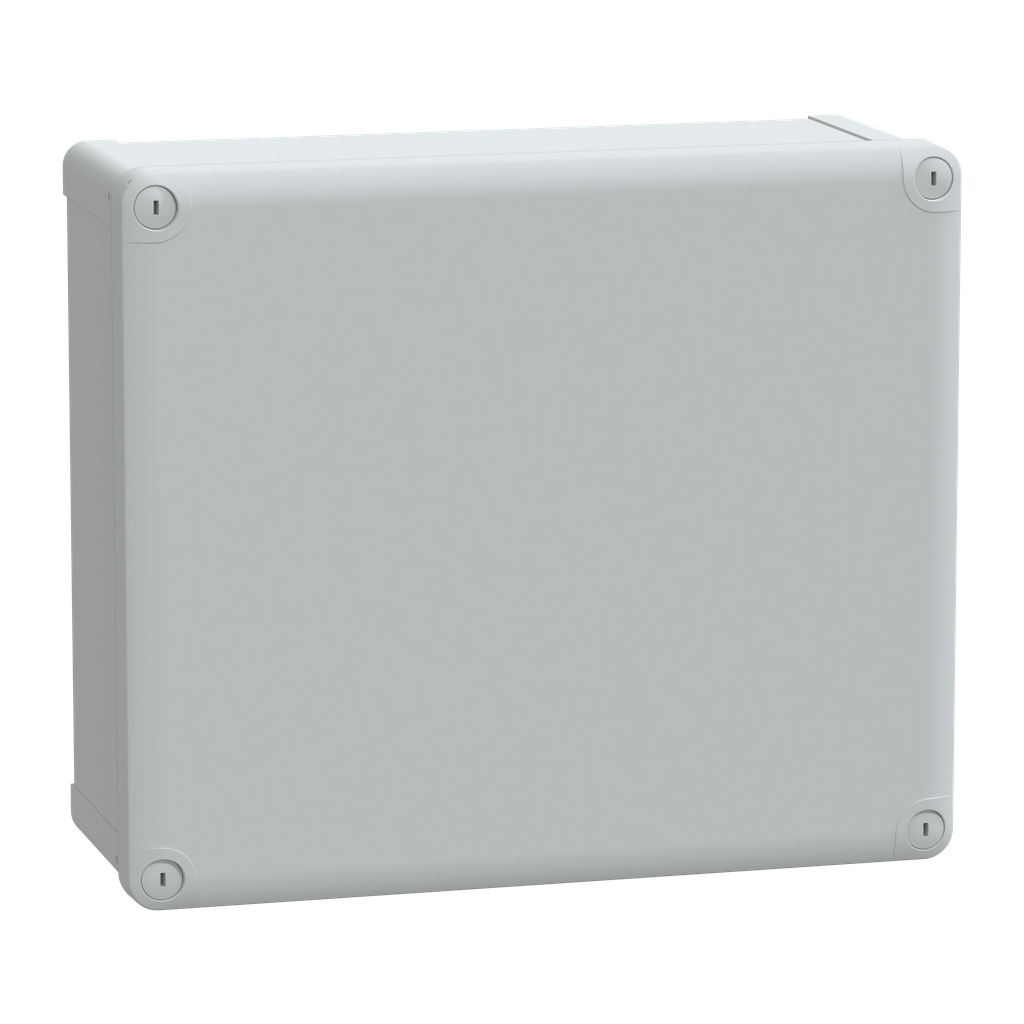

The Thalassa TBS industrial ABS box with opaque cover H20 is designed for multi-purpose application. The external dimensions are (H) 341 mm x (W) 291 mm x (D) 128 mm and the internal dimensions are (H) 325 mm x (W) 275 mm x (D) 120 mm. The cover is fixed by removable plastic captive screw that are flat outside the sealed area. The box is made of ABS (acrylonitrile butadiene-styrene) and offers IP66 protection against dust and water, IK07 hard impact resistance, 650°C glow wire resistance and class II insulation. The installation temperature is -15 °C to 40 °C and the operating temperature is -25 °C to 60 °C. This product is IEC 62208 certified and is qualified as green premium, with minimal use of hazardous substances.
Brand: Schneider Electric
Add to Quote CatalogueRemovable Parts | cover by captive screws |
---|---|
Height | 341 mm |
Product Or Component Type | industrial box |
Internal Width | 275 mm |
Internal Height | 325 mm |
Internal Depth | 120 mm |
Product Name | Thalassa TBS |
Lock Type | captive screw flat outside sealed area |
Device Composition |
|
Type Of Front Cover | low plain cover |
Range | Thalassa |
Body Type | one piece moulded |
Cover Fixing | plastic screws |
Enclosure Mounting | wall mounted |
Width | 291 mm |
Depth | 128 mm |
Device Application | multi-purpose |
Warranty | 18 months |
Product Certifications | TÜV |
Ik Degree Of Protection | IK07 IEC 62262 |
Ambient Air Temperature For Operation | -25-60 °C |
Standards | IEC 62208 |
Net Weight | 1.16 kg |
Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
Electrical Insulation Class | class II |
Ambient Air Temperature For Storage | -15-40 °C |
Material | ABS (acrylonitrile butadiene-styrene) |
Fire Resistance | 650 °C IEC 60695-2-11 |
Color | Gray RAL 7035) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2012015EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
