ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W191D128 Opaque cover H20

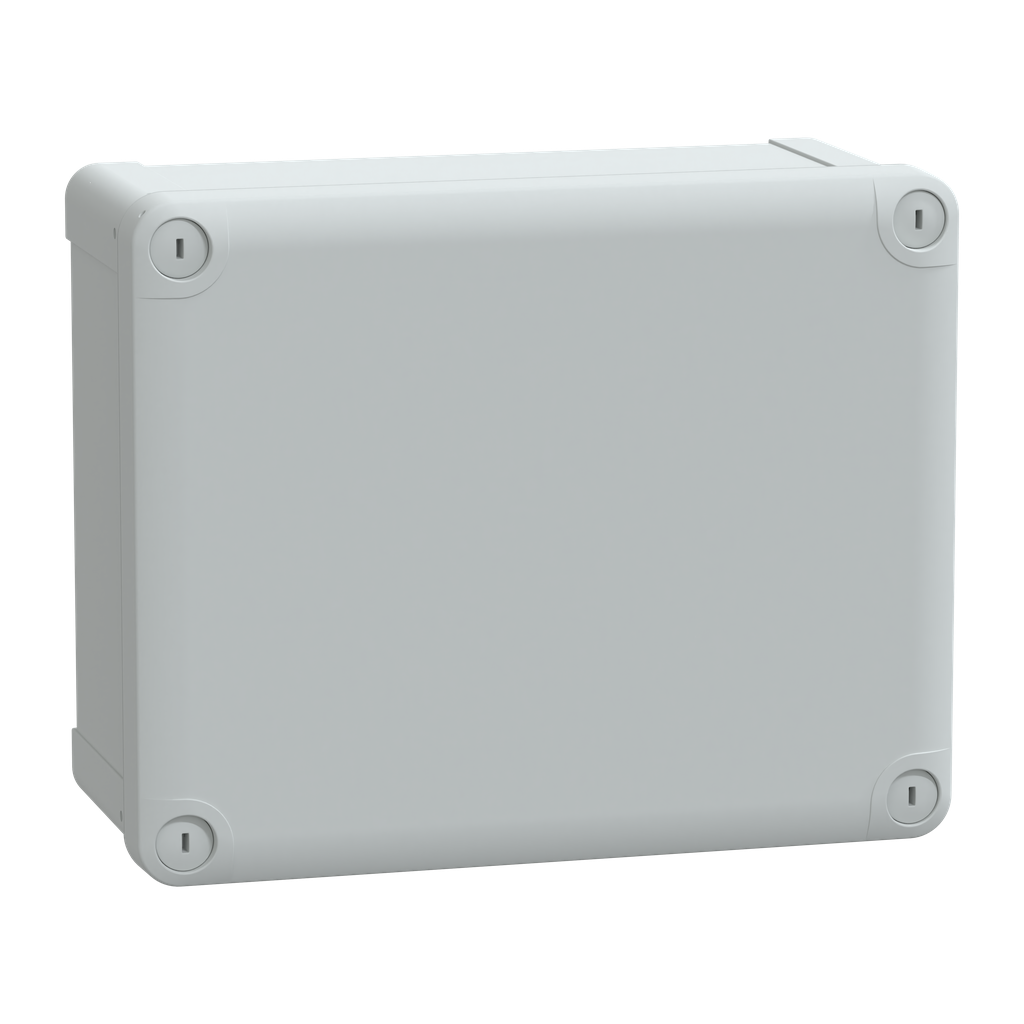

The Thalassa TBS industrial ABS box with opaque cover H20 is designed for multi-purpose application. The external dimensions are (H) 241 mm x (W) 194 mm x (D) 107 mm and the internal dimensions are (H) 225 mm x (W) 175 mm x (D) 100 mm. The cover is fixed by removable plastic captive screw that are flat outside the sealed area. The box is made of ABS (acrylonitrile butadiene-styrene) and offers IP66 protection against dust and water, IK07 hard impact resistance, 650°C glow wire resistance and class II insulation. The installation temperature is -15 °C to 40 °C and the operating temperature is -25 °C to 60 °C. This product is IEC 62208 certified and is qualified as green premium, with minimal use of hazardous substances.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Removable Parts | cover by captive screws |
|---|---|
| Height | 241 mm |
| Product Or Component Type | industrial box |
| Internal Width | 175 mm |
| Internal Height | 225 mm |
| Internal Depth | 100 mm |
| Product Name | Thalassa TBS |
| Lock Type | captive screw flat outside sealed area |
| Device Composition |
|
| Type Of Front Cover | low plain cover |
| Range | Thalassa |
| Body Type | one piece moulded |
| Cover Fixing | plastic screws |
| Enclosure Mounting | wall mounted |
| Width | 194 mm |
| Depth | 107 mm |
| Device Application | multi-purpose |
| Warranty | 18 months |
| Product Certifications | TÜV |
| Ik Degree Of Protection | IK07 IEC 62262 |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards | IEC 62208 |
| Net Weight | 0.7 kg |
| Ip Degree Of Protection | IP66 conforming to NEMA 4.4X |
| Electrical Insulation Class | class II |
| Ambient Air Temperature For Storage | -15-40 °C |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Fire Resistance | 650 °C IEC 60695-2-11 |
| Color | Gray RAL 7035) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012015EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
